Zipato
Flood Multisensor 3 in 1 - FLOHUTE, Z-Wave
ph-pat02.eu
Notification Sensor
HW: 1 FW: 1.08:01.06
SD3502
6.51.06
0x0131 (305)
0x0002 (2)
0x001F (31)
ZC10-17055614
2017-05-24 22:04:01.915341
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Flood Multisensor 3 in 1 - FLOHUTE, Z-Wave
Zipato Flood Multisensor 3 in 1 integrates flood, temperature and humidity sensors in one device, connected to your Z-Wave network of choice. This device offers elaborate safety and ambient sensing options. Multifunctional nature of this product allows you to be informed about water leakages and potential flood disasters, as well as to measure temperature and humidity levels

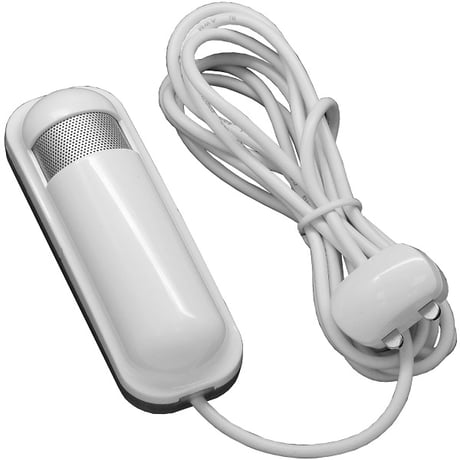

Product Picture
1 - Basic Set OFF Level
Setting the BASIC command value. When the flood trigger off(0x00), send the BASIC CC to the group 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | Setting the BASIC command value. |
2 - Basic Set ON Level
Setting the BASIC command value. When the flood trigger on(0xFF), send the BASIC CC to the group 2.Size: 1 byte
Default: 127
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | Setting the BASIC command value. |
5 - Operation Mode
Operation mode. Using bit to control.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Disable the Flood function. |
| 8 | 8 | Setting the temperature scale |
| 32 | 32 | Disable the temperature report after event triggered. (1:Disable, 0:Enable) |
6 - Multi- Sensor Function Switch
Multisensor function switch. Using bit to control.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 64 | 64 | Disable the humidity report after event triggered. (1:Disable, 0:Enable) |
7 - Costumer Function
Customer function switch, using bit control.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 8 | 8 | Disable send out BASIC OFF after the flood event cleared. (1:Disable, 0:Enable) |
| 16 | 16 | Notification Type, 0: Using Notification Report. 1: Using Sensor Binary Report. |
| 32 | 32 | Disable Multi CC in auto report. (1:Disable, 0:Enable) |
| 64 | 64 | Disable to report battery state when the device triggered. (1:Disable, 0:Enable) |
10 - Auto Report Battery Time
The interval time for auto report the battery level. 0 means turn off auto report. The default value is 12. The tick time can be set by the configuration No.20.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The interval time for auto report the battery level. |
13 - Auto Report Tempera- ture Time
The interval time for auto report the temperature. 0 means turn off auto report. The default value is 12. The tick time can be set by the configuration No.20.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The interval time for auto report the temperature. |
14 - Auto Report Humidity Time
The interval time for auto report the humidity. 0 means turn off auto report. The default value is 12. The tick time can be set by the configuration No.20.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The interval time for auto report the humidity. |
15 - Auto Report Flood Time
The interval time for auto report the flood state. 0 means turn off auto report. The default value is 12. The tick time can be set by the configuration No.20.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The interval time for auto report the flood state. |
20 - Auto Report Tick Interval
The interval time for auto report each tick. Setting this configuration will effect configuration No.10, No.13, No.14 and No.15. Units of one minute. Caution1: Setting to 0 means turn off all auto report function. Caution2: The value is unsigned byteSize: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The interval time for auto report each tick |
21 - Temperature Differential Report
The temperature differential to report. 0 means turn off this function. The unit is Fahrenheit. Enable this function the device will detect every 10 seconds. And when the temperature is over 140 degree Fahrenheit, it will continue report.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The temperature differential to report. |
22 - Humidity Differential Report
The humidity differential to report. 0 means turn off this function. The unit is percentage. Enable this function the device will detect every 10 seconds.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 60 | The humidity differential to report. |
Put Z-Wave Controller in Inclusion mode. Press the tamper key three times within 1.5 seconds to enter the Inclusion mode. After successful join, the device will enter wake state for 20 seconds, in order to receive the setting command from Z-Wave Controller.
Put Z-Wave Controller in Exclusion mode. Press the tamper key three times within 1.5 seconds to enter the Exclusion mode. Node ID has been excluded.
When the device powers on, the device will be in wake state for about 20 seconds. During this time, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy.
Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. Press the tamper key four times within 1.5 seconds and hold it until LED lights up. After 3 seconds the LED will turn OFF, and after that you should release the tamper key within 2 seconds. If successful, the LED will light up for one second. Otherwise, the LED will flash once. IDs are excluded and all settings will reset to factory default.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Water Alarm | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| Humidity |
