Remotec
AC MASTER
ZXT-600US
Thermostat - HVAC
HW: 3 FW: 0.21:00.32:171.01
ZM5202
6.61.00
0x5254 (21076)
0x0100 (256)
0x8490 (33936)
ZC10-17055619
2017-05-31 21:17:53.54986
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes

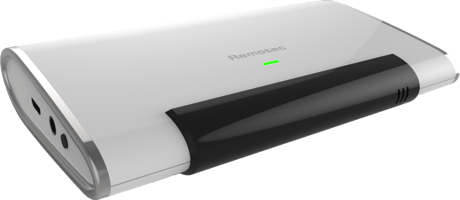

ZXT-600 AC Master -- Make your Infrared controlled air conditioner to be smart comfort control companion.
ZXT-600 AC Master is a Z-Wave plus certified IR Bridge for split air conditioner control by receiving Z-Wave command and translating to Infrared command and flawlessly work with any Z-Wave compliant gateway. With its over 250 brands built-in code library and ever-green up to date cloud IR database supporting advanced code learning search, ZXT-600 can easily set up and smart control most of AC brands and models actively worldwide by Z-Wave gateway. The battery powered device will allow you to mount it anywhere you want such as wall, ceiling or put it on table and never compromise on the form factor. By supporting OTA function, gateway can enable ZXT-600 to update firmware if newest available.
25 - Learn IR Code
Default: 0x00 range: (0x0000 to 0x20) refer to learning mapping tableSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32 | Storage Location |
26 - Check IR Code Learning Status
Default: 0x00 range: 0 to 4 (0x00 to 0x04) 0(0x00) : Idle - IR Channel is idle 1(0x01) : OK - the last learning operation was completed successfully 2(0x02) : Learning - ZXT-600 is busy processing previous learning request 3(0x03) : Full – All locations are being used. 4(0x04) : The last learning request was failed Note:The status value 0x01 and 0x04 will be reset to 0x00 after ZXT-600 receives a get command to this parameter.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | IR Code Learning Status |
27 - Set IR Code number from built-in code library
Refer to Code Finder WebpageSize: 2 bytes
Default: 211
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1150 | IR Code Number |
30 - Set Auto Report Condition– Trigger By Room Temperature change
0(0x00) = Disable (Default) (for saving battery life) Auto report if room temperature is different from last report. 1(0x01) = 1°F (0.5°C) 2(0x02) = 2°F (1°C) 3(0x03) = 3°F (1.5°C) 4(0x04) = 4°F (2°C) 5(0x05) = 5°F (2.5°C) 6(0x06) = 6°F (3°C) 7(0x07) = 7°F (3.5°C) 8(0x08) = 8°F (4°C)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 8 | Room Temperature Change |
32 - Set Built-in IR Emitter Control
If there have two or more Air Conditioners with the same code set that are used in the same room, user can disable the built-in IR emitter and use the external IR emitter cable to control each air conditioner individually. Default: 0xFF 0 or 255 (0x00 or 0xFF) 0(0x00): Disable 255(0xFF): Enable (Default)Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 255 | 255 | Enable |
33 - SWING Function
Control Air Conditioner "SWING" Function Default: 0x01 Range 0 to 1 (0x00 or 0x01) 0(0x00) : Swing OFF 1(0x01) : Swing Auto (Default)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | SWING OFF |
| 1 | 1 | SWING Auto |
34 - Set Auto Report Condition– By Time Interval
Auto report by the following time interval. 1(0x01) = 1 Hr 2(0x02) = 2 Hrs 3(0x03) = 3 Hrs 4(0x04) = 4 Hrs 5(0x05) = 5 Hrs 6(0x06) = 6 Hrs 7(0x07) = 7 Hrs 8(0x08) = 8 Hrs (Default)Size: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 8 | Time Interval |
37 - Calibrate Temperature Reading
Temperature offset value. 0(0x00) = 0°C (Default) 1(0x01) = 1°C 2(0x02) = 2°C 3(0x03) = 3°C 4(0x04) = 4°C 5(0x05) = 5°C 255(0xFF) = -1°C 254(0xFE) = -2°C 253(0xFD) = -3°C 252(0xFC) = -4°C 251(0xFB) = -5°CSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | Positive Range |
| 251 | 255 | Negative Range |
Step 1: Refer to your primary controller to enter into the Inclusion Mode Step 2: When it is prompted to enter it, please triple click the “PROG” button within 1 second. Step 3: Successful - Green Indicator flashes TWICE then stay off Unsuccessful : Red Indicator flashes TWICE then stay off
Step 1: Refer to your primary controller to enter into the Exclusion Mode Step 2: When it is prompted to enter it, please triple click the “PROG” button within 1 second. Step 3: Successful - Green Indicator flashes TWICE then stay off Unsuccessful : Red Indicator flashes TWICE then stay off
Press and Hold “PROG” button for 3 seconds on AC Master, the Green Indicator will light up. DO NOT Release the “PROG” Button until Green Indicator flashes TWICE. Remark : Only perform When the device is missing or inoperable in your primary controller
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Target Temperature |
