IHORN
Wireless Passive Infrared Detector
LH-990ZW
Notification Sensor
HW: 19 FW: 17.08
ZM5202
6.51.09
0x0320 (800)
0x0002 (2)
0x0001 (1)
ZC10-17085745
2017-06-02 18:54:04.533867
N/A
Routing Slave
Reporting Sleeping Slave
The Z-Wave passive infrared detector will send alarm signal to the control panel when the intruder across the detection area
The Z-Wave passive infrared detector will send alarm signal to the control panel when the intruder across the detection area.It uses 16-Bit low power consumption microprocessor,supports low voltage reminder,Otherwise,the deterctor has an anti-tamper switch on the back of the product.When the detector is removed illegally，it will send alarm signal to the control panel.

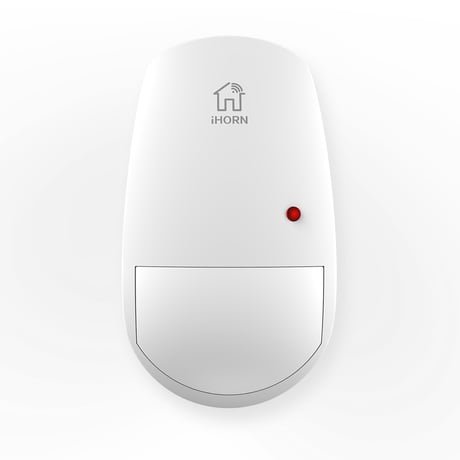

Product Picture
Put the Z-Wave Interface Controller into “Inclusion” mode, and following its instruction to include LH-990ZW to your controller. This PIR needs to be included before installation. 1、 Pull out the insulating strip, making the device power on. 2、 Pressing the test key three times. 3、 Red LED will blink three times while the network inclusion successful 4、 If inclusion failed, the sensor will go into sleep mode. To wake up the sensor again, you need to press the key to trigger an inclusion process, and then repeat steps from 3 to 4.
Put the Z-Wave interface controller into “Exclusion” mode and following its instruction to exclude PIR from your Z-Wave controller: 1、 Pressing the test key three times the enter exclusion mode. 2、 Red LED will blink three times while the network exclusion successful.
Press the test key one time to wakeup the product.
Press the test key five times while installing battery. Note: Use this procedure only in the event that primary controller is lost.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
