BeNeXt B.V.
Tag Reader 500 US
80820702.0
Entry Control Keypad
HW: 2 FW: 1.10
ZM5101
6.61.00
0x008A (138)
0x0007 (7)
0x0200 (512)
ZC10-17065667
2017-06-19 21:05:14.360124
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
A product that bridges RFID tags to the Z-Wave protocol
A Z-Wave security enabled entry control device. You can arm/disarm your house to home or away with the Tag Reader 500. With the use of a RFID tag or a numerical code the device can send an entry control message which can be handled by a supported gateway. In addition the Tag Reader supports the activation of scenes.

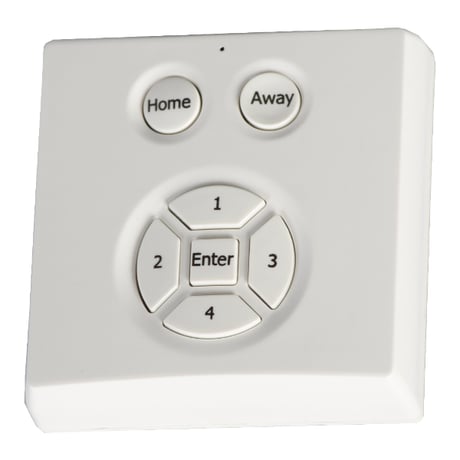

Product Picture
1 - Set to default
Set all configuration values to default values (factory settings).Size: 1 byte
Default: 170
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Set To Default |
| -1 | -1 | Set To Default |
2 - Feedback time
To configure the time (in seconds )the beep is automatically turned off.Size: 1 byte
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | -2 | Time in seconds |
| -1 | -1 | Disable feedback |
3 - Feedback timeout
To configure the timeout to wait for a WAKEUP_NO_MORE_INFORMATION before the error beep is automatically sound. The error beeps are fixed 8 beeps shortly after each other.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | -1 | Value in seconds |
4 - Feedback beeps per second
To configure the number of beeps per second. Every beep is fixedSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Number of beeps per second |
| 0 | 0 |
5 - Always awake mode
To configure the always awake modeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Normal operation mode |
| 3 | 3 | Always awake mode |
7 - Operation mode
The mode that the Tag Reader 500 communicates with the associated gateway.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Gateway mode |
| 1 | -1 | Local mode |
8 - Gateway confirmation
In gateway mode it is possible to let the gateway decide if the Tag Reader 500 can arm to home or away. If gateway indication is disabled the Tag Reader 500 automatically assumes that it can arm and will wait for a user input of RFID TAG or numeric code.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | -1 | Enabled |
To include the Tag Reader 500 US press and hold the enter button for two seconds (indication LED blinks shortly). Release the enter button now to start the inclusion (during the inclusion routine the indication LED willblink twice per second).
To exclude the Tag Reader 500 US press and hold the enter button for two seconds (indication LED blinks shortly). Release the enter button now to start the exclusion (during the exclusion routine the indication LED willblink twice three times per 1,5 second).
Press and hold the button fpr 7 seconds, the indication LED will go on for 1 full second.
The Tag Reader 500 US has an option to reset it self to factory settings. Please use this procedure only when the network primary controller is missing or otherwise inoperable. To reset to factory settings please follow these steps: 1. Press the enter button for 2 seconds, release the enter button to start the remove routine (indication LED will blink 3 times every second). 2. During the remove routine press enter button 4 times within 1,5 seconds to reset the product. 3. If ‘back to factory settings’ was successful the indication LED will go in for 1 full second on the end of the remove routine. 4. A DEVICE_RESET_LOCALLY_NOTIFICATION is sent to the nodes associated in the lifeline group.
