Vision
4in1 PIR Sensor
ZP3111JP-5
Notification Sensor
HW: 5 FW: 5.01:10.01
ZM5202
6.51.06
0x0109 (265)
0x2021 (8225)
0x2101 (8449)
ZC10-17075680
2017-06-23 21:05:01.885199
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
This sensor monitors movement, and send Z-Wave TM signal when movement is detected inside the building. With Temperature, Humidity & Light sensor built inside, it will send the signal out when temperature, humidity & Lightness changed.
* Includes Motion, Temperature, Humidity, and Light sensor * 360 degree detection (suitable for ceiling fixture) * Compact Size: 59*59*41mm * 2*AAA Battery * Low Battery Detection * LED Status Indicator * 100feet line of sight

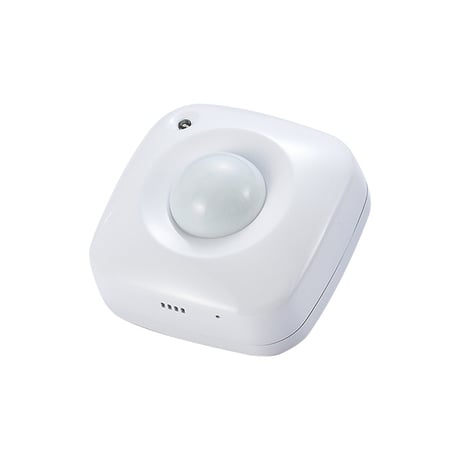

Product Picture
1 - Temperature Unit Selection
0x00 = °C 0x01 = °FSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Choose °F |
2 - Auto Temperature Report Interval
1~50 (Set up from 0.1°C~5°C)Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | Auto Temperature Interval from 0.1°C~5°C |
3 - Auto Humidity Report Interval
1~50 (Set up from 1%~50%)Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50 | Auto Humidity Report Interval from 1% ~ 50% |
4 - Auto Light Report Interval
0,5~50 (Set up from 0 for Off or 5%~50%)Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 50 | Auto Light Report Interval from off or 5%~50% |
5 - Motion Re-triggering Duration
1 ~ 255 (unsigned decimal) Minutes (default: 3 minutes)Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Motion Re-triggering Duration (in minute) |
6 - Motion Sensitivity
1 ~ 7 (default: 4)Size: 1 byte
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 7 | Motion Sensitivity |
7 - LED Flash Mode Selection
1 ~ 3 (Mode 1 ~ Mode 3) Mode 1 LED Turn Off (Both Temp./PIR Trigger) Mode 2 Temp. (Breathing Light Mode) PIR (Quick Flash) Mode 3 LED Quick Flash (Temp./PIR Trigger)Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | LED Flash Mode Selection |
To add the ZP3111 to the Z-Wave network (inclusion), place the Z-Wave primary controller into inclusion mode. Press the Program Switch of ZP3111 for sending the NIF. After sending NIF, Z-Wave will send the auto inclusion, otherwise, ZP3111 will go to sleep after 20 seconds.
To remove the ZP3111 from the Z-Wave network (exclusion), place the Z-Wave primary controller into “exclusion” mode, and following its instruction to delete the ZP3111 to the controller. Press the Program Switch of ZP3111 once to be excluded.
Use “Wake Up” command to set up the awaking time (from 10 minutes to 1 week) and send the wake up notification to controller
Remove cover to trigged tamper switch, LED flash once & send out Alarm Report. Press Program Switch 10 times within 10 seconds, ZP3111 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.)
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
