Wink
Wink Siren
Wink Siren
Siren
HW: 48 FW: 2.65
ZM5202
6.51.08
0x017F (383)
0x0200 (512)
0x0001 (1)
ZC10-17065664
2017-06-23 23:17:03.537452
N/A
Routing Slave
Listening Sleeping Slave
Yes
Z-Wave Plus battery-powered siren with a primary alarm, secondary chime, and LED. The user can select the sound to play for the primary alarm and secondary chime from 10 choices.
The Wink Siren is a Z-Wave Plus battery-powered device that will sound an alarm, chime, and flash a built-in light to let you know when doors and windows open or when motion is detected in your home. The siren’s multi-purpose functionality of an alarm siren, doorbell, or chime notification can be turned on and off manually or automatically from your smartphone using a Wink Hub or other Z-Wave Plus certified hub. The Wink Siren offers ten user selectable sounds for alarm and chime, with three volume levels (up to 105dB) and adjustable siren duration timeout. Additional visual notification is provided by built-in flashing blue LEDs when triggered. The Wink Siren offers an extra-long z-wave wireless range of up to 150 feet, so you can place it in your home where it’s needed, and requires a Wink Hub or other Z-Wave Plus certified hub for operation. The siren comes with two CR123A 3.0V batteries and has a three-year battery life, and will send an alert to your smartphone when the device has low battery. · Z-Wave Plus Certified · Requires a Z-Wave Plus Certified Hub to operate · Works with all Z-Wave Plus compatible networks · 110° Extra-Wide Coverage Area · Up to 150 feet range · Three-Year Battery Life (Two CR123 Batteries included) · Low Battery Indication · Measurements in millimeters: 64.3 x 64.3 x 30.1

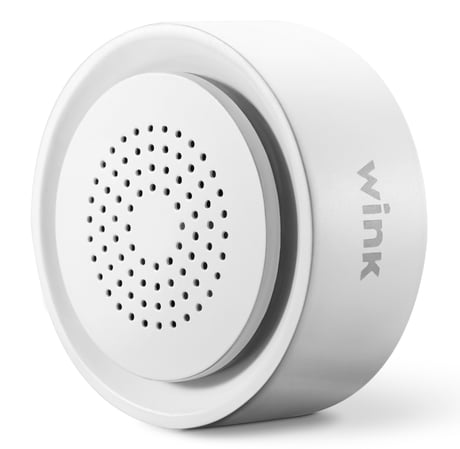

Product Picture
1 - Primary Notification Volume Level
This parameter sets the volume of the Siren (primary) sound. There are three possible volume levels available.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Low Volume |
| 2 | 2 | Medium Volume |
| 3 | 3 | High Volume |
2 - Primary Notification Length
This parameter defines the length of the Alarm/primary notification.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -1 | -1 | Plays until battery dies |
| 1 | 1 | 30 Sec |
| 2 | 2 | 1 Min |
| 3 | 3 | 5 Min |
3 - Secondary Notification Length
This parameter defines the length of the Chime/secondary notification.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | -2 | Chime Duration (in Minutes; -128=128 min, -2=254 min) |
| -1 | -1 | Chime Will Not Play |
| 0 | 0 | Does Not Stop |
| 1 | 127 | Chime Duration (in Minutes) |
4 - Secondary Notification Volume Level
This parameter sets the volume of the Chime (secondary) sound. There are three possible volume levels available.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Low Volume |
| 2 | 2 | Medium Volume |
| 3 | 3 | High Volume |
5 - Primary Notification Sound
The Siren offers ten different sounds to use as the Siren (primary) notification. This parameter sets the Siren (primary) notification sound.Size: 1 byte
Default: 9
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | Tone Index Number |
6 - Secondary Notification Sound
If Parameter 7 is set to 02, the Siren will play a secondary chime sound instead of the main alarm. The Siren offers ten different sounds to use as the Chime (secondary) notification. This parameter sets the Chime (secondary) notification sound.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | Tone Index Number |
7 - Toggle Secondary Chime
This Parameter toggles between the Primary and Secondary notification sound to be played when the Siren receives a BINARY_SWITCH_SET(FF) command.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Primary Notification Will Play |
| 2 | 2 | Secondary Notification Will Play |
Follow the instructions for your Z-Wave certified Controller to enter inclusion mode. When prompted by the Controller: 1. For proper inclusion, bring the Siren within range of your Controller. 2. Pull the tab on the side of the siren to power on, or remove then re-install the batteries. The LED Ring will flash five times indicating inclusion.
Follow the instructions for your Z-Wave certified Controller to enter exclusion mode. When prompted by the Controller: 1. Remove the Back Plate of the Siren and be sure it is powered on 2. Press the Connect Button quickly 3 times in a row. The LED Ring will flash five times indicating exclusion/disconnection.
To disconnect from the Z-Wave Network and restore factory default settings: 1. Remove the Back Plate and make sure the Siren is powered. 1. Hold the Connect Button for 10 seconds until the LED Ring blinks once, then release the button. Only do this if the controller is missing or otherwise unreachable!
Use the Binary Switch command class to trigger the main siren, or the Indicator. Set command to trigger one of ten different secondary chime notifications (indicator.set accepts values from 01~0A.)
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Siren |
|
