Remotec
Z-Wave Repeater
ZRP-110US
Repeater
HW: 1 FW: 0.10
ZM5202
6.71.01
0x5254 (21076)
0x1000 (4096)
0x8141 (33089)
ZC10-17075695
2017-07-21 21:58:16.985873
N/A
Routing Slave
Always On Slave

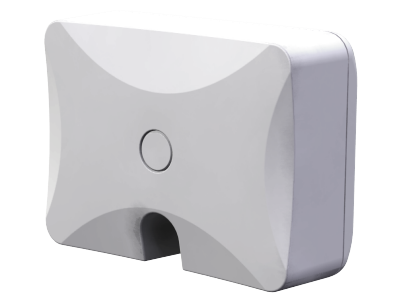

The ZRP-110 is a Z-Wave Repeater with Best RF Performance to replicate Z-Wave Signals in a network.
ZRP-110 is a Z-Wave repeater with best RF performance to replicate Z-Wave signals in a network. The repeater re-transmits an input Radio Frequency (RF) signal by routing the signal around obstacles and radio dead spots to ensure that the signal is received at its intended destinations. ZRP-110 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller must be used in order to fully utilize the product.
1, Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. 2, When prompted by your primary controller, triple click the PROG button within 1 second. 3, The primary controller should indicate that the action was successful. If the controller indicates the action was unsuccessful, please repeat the procedure.
1, Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. 2, When prompted by your primary controller, triple click the PROG button within 1 second. 3, The primary controller should indicate that the action was successful. If the controller indicates the action was unsuccessful, please repeat the procedure.
1, Press and keep holding the PROG button for not less than 10 seconds. - LED state will toggle for first 5 seconds of being pressed. LED state will toggle again after the remaining 5 seconds. 2, Release the PROG button then triple click the PROG button within 2 seconds of step 1. - LED will stay in previous ON or OFF stage. Remark: Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
