Saykey

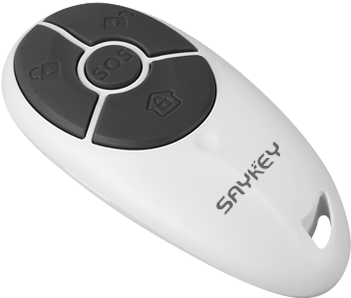

Keyfob Remote Control
SK-5005-02
Remote Control - Multi Purpose
HW: 33 FW: 1.01
ZM5202
6.51.09
0x032C (812)
0x5005 (20485)
0x0002 (2)
ZC10-17115851
2017-11-13 20:44:48.790637
N/A
Portable Controller
Portable Controller
Yes
Key‐fob Remote Control with 4 keys is a Z‐Wave standard reporting portable controller (RPC).
Key‐fob Remote Control with 4 keys is a Z‐Wave standard reporting portable controller (RPC). It supports multiple key press action trigger central scenes notification and/or controls max 8 devices in group turn on, off, stop. A special "SOS" key designs for emergency notification. Further more, it can act as primary controller to add and control Z‐Wave device as standalone application. The product supports acting as Z‐Wave primary controller to add (inclusion), remove (exclusion) device stand alone, meanwhile it can associated device to control groups while the device was added, supports triggers control associated device in groups. Also, It supports learn mode for added by other master controller, supports trigger central scene command to master controller, and it can associated control devices by key‐fob local operation or master controller association set configuration.
1 - Protect timeout
From last key‐fob operation complete protect timeout or received protect command from master controller; key‐fob’s keyboard was protected no more keyboard except un‐protect sequence is acceptable.Size: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 60 | Protect timeout, in second. |
1) Press and hold both ""On"" and ""Off"" key together for 2 seconds until LED indicator light on, release all key; 2) Press and hold ""Stop"" key for 2 seconds until LED indicator intermittently flash (light on 2 times in 3 second), key‐fob starts copy controller network processing; 3) Refer to controller manual, trigger the controller which is going to copied starts network learn mode; 4) If key‐fob detects any controller started network learn mode, it implement copy controller procedure and LED indicator light on for 3 seconds after copy successful; If key‐fob has not detects any device in 60 seconds, exit copy controller process and LED indicator turn off.
1) Press and hold both ""On"" and ""Off"" key together for 2 seconds until LED indicator light on, release all key; 2) Press ""Stop"" key 3 times in 2 seconds and LED indicator flash Flash on fast 3 times, then product keep in wakeup for 30 second without initial wakeup parameter or 10 second has initial wakeup parameter.
1) Press and hold both ""On"" and ""Off"" key together for 2 seconds until LED indicator light on, release all key; 2) Press and hold both ""Stop"" and ""SOS"" key together for 10 seconds, during hold time LED will blink off 0.5 second interval 2 seconds. After hold 10 seconds LED indicator light off, then release all keys, factory default is retrieve, LED indicator will flashes three times after restore factory default success. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
User can protect key‐fob’s keyboard avoid un‐want press key‐fob keyboard by Protect Command Class. Factory default un‐protect the keyboard, user can re‐configuration protect timeout value between 30 second to 60 second to enable keyboard protect function. From last key‐fob operation complete protect timeout or received protect command from master controller; key‐fob’s keyboard was protected no more keyboard except un‐protect sequence is acceptable.
1) Press and hold both ""On"" and ""Off"" key together for 2 seconds until LED indicator light on, release all key; 2) Press and hold ""On"" key for 2 seconds until LED indicator flash slowly (3 second on, 3 second off), key‐fob starts add device processing; 3) Refer to device manual, trigger the device which is going to included start network add/remove mode; 4) If key‐fob detects any device started network add/remove mode, it implement add device procedure and LED indicator light on for 3 seconds after inclusion successful; If key‐fob has not detects any device in 60 seconds, exit add device process and LED indicator turn off.
1) Press and hold both ""On"" and ""Off"" key together for 2 seconds until LED indicator light on, release all key; 2) Press and hold ""Off"" key for 2 seconds until LED indicator flash quickly (1 second on, 1 second off), key‐fob starts remove device processing; 3) Refer to device manual, trigger the device which is going to included start network add/remove mode; 4) If key‐fob detects any device started network add/remove mode, it implement remove device procedure and LED indicator light on for 3 seconds after exclusion successful; If key‐fob has not detects any device in 15 seconds, exit remove device process and LED indicator turn off.
| Type | Value(s) |
|---|
