GE
In-Wall Smart Fan Control
14287/ZW4002
Fan Switch
HW: 255 FW: 5.22
ZM5202
6.51.10
0x0063 (99)
0x4944 (18756)
0x3131 (12593)
ZC10-17075673
2017-07-01 00:41:51.981296
N/A
Enhanced 232 Slave
Always On Slave

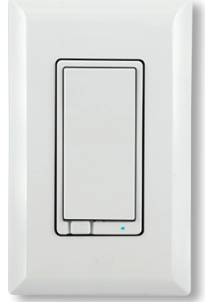

Transform any home into a smart home with the GE Z-Wave Smart Fan Control.
Transform any home into a smart home with the GE Z-Wave Smart Fan Control. The in-wall fan control easily replaces any standard in-wall switch remotely controls a ceiling fan in your home and features a three-speed control system. Your home will be equipped with ultimate flexibility with the GE Z-Wave Smart Fan Control, capable of being used by itself or with up to four GE add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The GE Z-Wave Smart Fan Control is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with GE Z-Wave Smart Lighting Controls!
4 - Invert Switch
If the switch is accidentally installed upside down with “On” at the bottom and “Off” at the top, the default On/OffSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Default |
| 1 | 1 | Invert |
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press and release the top or bottom of the smart fan control switch (rocker) to include it in the network. 3. Once your controller has confirmed the device has been included, refresh the Z-Wave network to optimize performance.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press and release the top or bottom of the wireless smart switch (rocker) to exclude it from the network.
1. Quickly press ON (Top) button three (3) times then immediately press the OFF (Bottom) button three (3) times. The LED will flash ON/OFF 5 times when completed successfully. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
