Yale
Conexis L1
SD-L1000-CH
Door Lock - Keypad
HW: 32 FW: 32.16:15.16
ZM5202
6.71.01
0x0129 (297)
0x6600 (26112)
0x0002 (2)
ZC10-17085747
2017-08-21 02:57:00.590984
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Open the door to your world with the Conexis L1 Smart Door Lock. The Smart Door Lock that puts you fully in control giving you the freedom to secure your home without the need for a key.
Features: Control Via Smartphone - Configure, Control and unlock your Smart Door Lock from your smartphone via our secure Bluetooth App. Keyless - Say goodbye to keys, Open your Smart Door lock via your smartphone, Key Card or Key Tag. Simple to Fit - Engineered for easy installation. Connectivity - Compatible with the Yale Smart Home system. (Yale module sold separately) Security as standard - Built in tamper alarm, PAS24 accredited. Battery Operated - Powered by 4 AA batteries and a warning when they're running low. Battery Backup - A 9v battery connection port can be used to power the Smart door lock in the event of flat batteries. Secure Push & Turn Thumbturn - Engineered to give additional convenience and security to your door

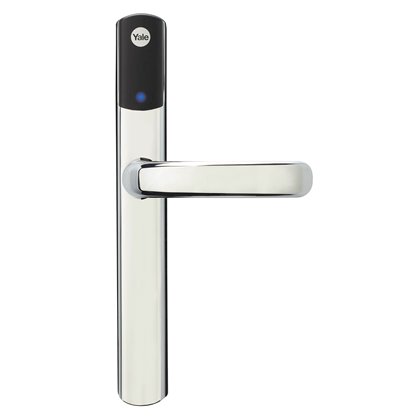

Product Picture
1 - Volume
Volume Control (Silent, Low, High)Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Silent Mode |
| 2 | 2 | Low Volume Mode |
| 3 | 3 | High Volume |
2 - Auto Relock
Auto relock will cause the lock to automatically relock if the Conexis has been unlocked, but the lever handle has not been depressed (no-one has walked through the door). On or OffSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto relock off |
| 255 | 255 | Auto relock on |
3 - Relock Time
The amount of time in seconds before the Conexis auto relocks. This will only happen if the Conexis has been unlocked, but the lever handle has not been depressed (no-one has walked through the door).Size: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 7 | 60 | Relock time (secs) |
4 - Wrong Tag Limit
The amount if incorrect tags that can be presented to the lock before it times out. Once it has timed out it will stop accepting tags for the amount of time specified in the Wrong Tag timeoutSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 20 | Number of incorrect tags before limit |
7 - Wrong tag timeout
The amount of time the lock will not accept tags for once the wrong tag limit has been reached. It will still be possible to unlock through BLE or the Z-Wave hub.Size: 1 byte
Default: 180
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 250 | Timeout time (secs) |
Put the Z-Wave controller into add or learn mode Press the R button on the lock 3 times quickly (within 1.5 seconds) Refer to the operation manual of the Z-Wave controller to complete the learn in process For more information on this please visit: www.yale.co.uk/smart-living
Put the existing Z-Wave controller into Remove Mode Press the R button on the lock 3 times quickly (within 1.5 secs) The lock is now ready to be added to a new Z-Wave controller For more information on this please visit: www.yale.co.uk/smart-living
Only use this when the existing Z-Wave controller is missing or inoperable Lift up the lever handle While holding the handle up, press the R button 3 times within 1.5 seconds
