Climax Technology
Door Contact
DC-23ZW
Notification Sensor
HW: 255 FW: 2.06
ZM5202
6.71.01
0x018E (398)
0x0001 (1)
0x0007 (7)
ZC10-17085726
2017-08-09 14:55:19.771527
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes

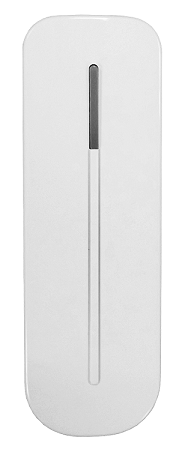

DC-23ZW Series is a wireless Z-Wave door contact designed to detect the unauthorized opening and closure of doors or windows.
DC-23ZW is multi-functional, with a built-in extension terminal which allows it to be added to an existing wired sensor or to double as an universal transmitter. Compatible with any Z-Wave mesh networks and devices, the DC-23ZW is ideal for security and home automation applications. It’s elegant, and modish design and no hassle installation allows it to easily fit seamlessly into any home decor. DC-23ZW Series alerts the system control unit to any irregular activities and sends low battery signals as well as regular supervision signals to check system integrity.
1. Pull out the battery insulator; this will connect the battery to power on the Door Contact. 2. Put the Z-Wave Gateway or Control Panel into Inclusion mode (Please refer to the Z-Wave Gateway or Control Panel manual). 3. Press the Function button 3 times within 1.5 seconds. 4. Refer to the operation manual of the Z-Wave Gateway or Control Panel to complete adding process. 5. If the Door Contact has already been added (included) into another Z-Wave Gateway/Control Panel, or if the Door Contact is unable to be added into the current Z-Wave Gateway/Control Panel, please exclude it first (see Removing Device) before attempting to include it into the current Z-Wave Gateway/Control Panel.
1. Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). 2. Within 1.5 seconds, press the Function Button 3 times and the Door Contact will be removed from the Z-Wave network.
The Wake Up Command Class allows the battery-powered Door Contact to notify the Control Panel/Gateway that it is awake and ready to receive any queued commands. The wake up interval time period is programmed automatically according to Control Panel’s setting when The Door Contact is included. The recommended setting of the interval time is between 30 to 60 minutes.
Press and hold the Function Button of the Door Contact for 10 seconds to factory reset (only use factory reset when network Control Panel/Gateway is missing or inoperable).
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
