Siterwell Technology

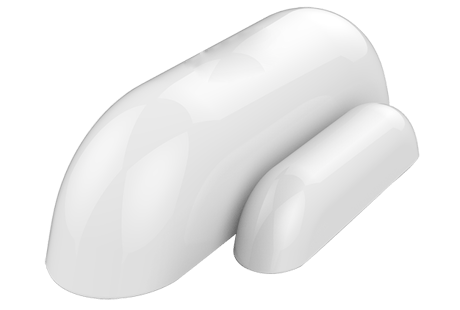

Siterwell Door Sensor
STW-W3320WU
Notification Sensor
HW: 65 FW: 3.61
ZM5202
6.51.06
0x0266 (614)
0x0003 (3)
0x0320 (800)
ZC10-17085748
2017-08-25 21:34:28.911351
N/A
Routing Slave
Reporting Sleeping Slave
Yes
Door sensor is an intelligent security equipment that can transmit the Z-Wave network which has particular frequency.
Door sensor is an intelligent security equipment that can transmit the Z-Wave network which has particular frequency. In the Z-Wave network communications, door sensor can be connected to any Z-Wave main controller (ex, SiterOne tablet). The door sensor can send messages to the Z-Wave main controller, and realize association with other devices through the Z-Wave main controller. Different countries or areas, the radio frequency is different. In the communication with the Z-Wave main controller, the door sensor can send messages to the Z-Wave main controller, but it cannot receive messages from the Z-Wave main controller. When alarm is triggered, the door sensor sends messages to the Z-Wave main controller, the Z-Wave main controller will displays the current status of door sensor, so the door sensor can associate with other devices. Door sensor is battery powered, is small and can be installed on the window or door easily. When the door or window is open, the door sensor is triggered and linkage alarm realized.
1 - On/Off Duration
This configuration parameter that can be used to adjust the amount of delay before the OFF command is transmitted. This parameter can be configured with the value of 0 through 65535, where 0 means send OFF command immediately and 65535 means 65535 seconds of delay.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | inseconds,each1s |
| 0 | 0 |
2 - Basic Set
Basic Set Command will be sent where contains a value when the door/window is opened or closed, the receiver will take it for consideration; for instance, if a lamp module is received the Basic Set Command of which value is decisive as to how bright of dim level of lamp module shall be.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | OFF, Alarm cancelling or turning a device off |
| 1 | 99 | ON (Binary Switch Device) Dim Level (Multilevel Switch Device) |
| 255 | 255 | ON (Binary Switch Device) Dim Level (Multilevel Switch Device) |
Add Door Sensor to Z-Wave Network The door sensor can be added to the Z-Wave network by pressing the code button. Disassemble the door sensor main body and insert the battery. Make sure the device is located within the direct range of the controller. Set the main controller SiterOne into the adding mode (see mail controller’s operating manual). Quickly, triple click the code button, LED light will flash for 5 times. Door sensor will be detected and added in the Z-Wave network. Wait for the main controller to configure the sensor.
Remove Door Sensor from Z-Wave Network Make sure the sensor is inserted with battery. Set the main controller into the remove mode (see main controller’s operating manual). Quickly, triple click the code button, LED light will flash for 5 times. Wait for the main controller to remove the sensor.
Restore Door Sensor to Factory Default Reset will delete all information on the Z-Wave network or Z-Wave controller, and restore the sensor to factory default settings. Remove the cover of door sensor main body. Make sure the sensor is inserted with battery. Press and hold the reset button for 10 seconds, LED light will flash red for 1 time. Release the button. Note: use the reset procedure only when the primary controller is missing or inoperable. NOTE When the Door Sensor is being restored to factory default settings, please make sure the battery is inserted.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
