GATEMAN
R200-CH
R200-CH
Door Lock - Keypad
HW: 32 FW: 32.16:16.16
ZM5202
6.71.01
0x0212 (530)
0xC601 (50689)
0x0001 (1)
ZC10-17085751
2017-08-25 21:27:12.45315
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes

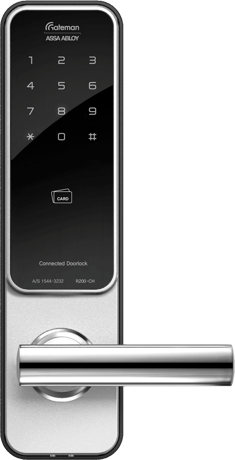

Digital Doorlock with RF connection built in and optional Z-Wave connection available
Digital Doorlock by Gateman Manufacturer: iRevo, ASSA ABLOY Basic Feature: - Usual doorlock features as locking and opening digitally Remote Feature: - RF connection by remote controller(certified by iRevo) - Z-Wave connection with major telcomm platform providers(LGU+) - Bluetooth connection with Gateman Smart Living service Other detail functions can be found in Gateman website - www.egateman.co.kr
To include: 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'R' button [Registration] from the inside of battery cover. 4. Press 9,#,1,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play than press 'R' button
To exclude: 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'R' button [Registration] from the inside of battery cover. 4. Press 9,#,3,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play than press 'R' button
The lock is always in 'Wake up status'. However, touch with palm to begin and end action.
To reset to factory defaults: ※ Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. (User code or master code remains the same. Only network settings reset to factory defaults.) 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'R' button [Registration] from the inside of battery cover. 4. Press 9,#,9,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play than press 'R' button
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Power Management | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
