Philio
Slim Multisensor
PST02-A
Notification Sensor
HW: 1 FW: 1.29:01.22
SD3502
6.51.09
0x013C (316)
0x0002 (2)
0x000C (12)
ZC10-17095769
2017-09-07 21:31:48.311083
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Slim Multisensor 4 in 1 (PIR, Door/Window, Temperature and Illumination)
The slim multisensor PST02 has PIR, door/window, temperature and illumination, 4 sensors function in one,based on Z-Wave technology.

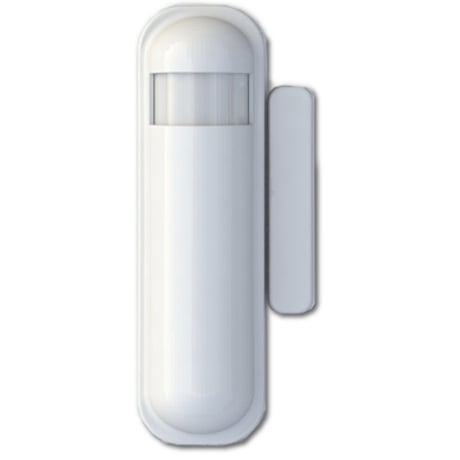

Product Picture
2 - Basic Set Level
Setting the BASIC command value to turn on the light. The 0xFF(-1) means turn on the light. For dimmer equipment 1 to 100 means the light strength.0 means turn off the light.Caution: The value is unsigned byte, the range is from 0x00 ~ 0xFF.Size: 1 byte
Default: 127
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | equipment 1 to 100 means the light strength. 0 means turn off the light |
| 0 | 0 | turn off the light |
3 - PIR Sensitivity
PIR sensitivity settings.0 means disable the PIR motion.1 means the lowest sensitivity,99 means the highest sensitivity.High sensitivity means can detected long distance, but if there is more noise signal in the environment, it will re-trigger too frequency.Size: 1 byte
Default: 80
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | PIR sensitivity settings |
| 0 | 0 | disable the PIR motion |
| 1 | 1 | the lowest sensitivity |
| 99 | 99 | the highest sensitivity |
4 - Light Threshold
Setting the illumination threshold to turn on the light. When the event triggered and the environment illumination lower then the threshold, the device will turn on the light.0 means turn off illumination detected function. And never turn on the light.1 means darkest.99 means brightest.100 means turn off illumination detected function. And always turn on the light Notice: In none test mode, only the value in 1 to 99 will enable the illumination detected function and update the illumination value.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Setting the illumination threshold to turn on the light |
| 1 | 1 | 1 means darkest |
| 99 | 99 | 99 means brightest |
| 100 | 100 | 100 means turn off illumination |
5 - Operation Mode
Operation mode. Using bit to control.Caution: The value is unsigned byte, the range is from 0x00 ~ 0xFF. Bit0: Reserve. Bit1: 1 means test mode, 0 means normal mode. Bit2: Disable the door/window function. (1:Disable, 0:Enable) Bit3: Setting the temperature scale. 0: Fahrenheit, 1:Celsius Bit4: Disable the illumination report after event triggered. (1:Disable, 0:Enable) Bit5: Disable the temperature report after event triggered. (1:Disable, 0:Enable) Bit6: Reserve. Bit7: Disable the back key release into test mode. (1:Disable, 0:Enable)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Setting Operation mode. |
| 2 | 2 | Bit1: 1 means test mode, 0 means normal mode. |
| 4 | 4 | Bit2: Disable the door/window function.(1:Disable, 0:Enable) |
| 8 | 8 | Bit3: Setting the temperature scale. 0: Fahrenheit, 1:Celsius |
| 10 | 10 | Bit4: Disable the illumination report after event triggered. (1:Disable, 0:Enable) |
| 20 | 20 | Bit5: Disable the temperature report after event triggered. (1:Disable, 0:Enable) |
| 40 | 40 | Bit6: Reserve. |
| 80 | 80 | Bit7: Disable the back key release into test mode. (1:Disable, 0:Enable) |
| 1 | 1 | Bit0: Reserve. |
6 - Mult- Sensor Function Switch
Multisensor function switch. Using bit to control.Caution: The value is unsigned byte, the range is from 0x00 ~ 0xFF. Bit0: Disable magnetic integrate illumination to turn ON the lighting nodes in the association group 2. (1:Disable, 0:Enable) Bit1: Disable PIR integrate Illumination to turn ON the lighting nodes in the association group 2. (1:Disable, 0:Enable) Bit2: Disable magnetic integrate PIR to turn ON the lighting nodes in the association group 2. (1:Disable, 0:Enable) (Default is Disable) Bit3: When Bit2 is 0 (Enable), Are the device and the lighting in the same room? 0: In the same room(Default),1: In the different room. Bit4: Disable delay 5 seconds to turn off the light, when door/window closed. (1:Disable, 0:Enable) Bit5: Disable auto turn off the light, after door/window opened to turn on the light. (1:Disable, 0:Enable) Bit6: Reserve. Bit7: Reserve.Size: 1 byte
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Multisensor function switch |
| 1 | 1 | Bit0: Disable magnetic integrate illumination to turn ON the lighting nodes in the association group 2. (1:Disable, 0:Enable) |
| 2 | 2 | Bit1: Disable PIR integrate Illumination to turn ON the lighting nodes in the association group 2. (1:Disable, 0:Enable) |
| 4 | 4 | Bit2: Disable magnetic integrate PIR |
| 8 | 8 | Bit3: When Bit2 is 0 (Enable), Are the device and the lighting in the same room? 0: In the same room(Default),1: In the different room |
| 10 | 10 | Bit4: Disable delay 5 seconds to turn off the light, when door/window closed.(1:Disable, 0:Enable) |
| 20 | 20 | Bit5: Disable auto turn off the light, after door/window opened to turn on the light.(1:Disable, 0:Enable) |
| 40 | 40 | Bit6: Reserve. |
| 80 | 80 | Bit7: Reserve. |
7 - Customer Function
Customer function switch, using bit control.Caution: The value is unsigned byte, the range is from 0x00 ~ 0xFF. Bit0: Reserve. Bit1: Enable sending motion OFF report. (0:Disable, 1:Enable) Bit2: Enable PIR super sensitivity mode. (0:Disable, 1:Enable) Bit3: Disable send out BASIC OFF after door closed. (1:Disable, 0:Enable) Bit4: Notification Type, 0: Using Notification Report. 1: Using Sensor Binary Report. Bit5: Disable Multi CC in auto report. (1:Disable, 0:Enable) Bit6: Disable to report battery state when the device triggered.(1:Disable, 0:Enable) Bit7: Reserve.Size: 1 byte
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Customer function switch |
| 1 | 1 | Bit0: Reserve. |
| 2 | 2 | Bit1: Enable sending motion OFF report. (0:Disable, 1:Enable) |
| 4 | 4 | Bit2: Enable PIR super sensitivity mode. (0:Disable, 1:Enable) |
| 8 | 8 | Bit3: Disable send out BASIC OFF after door closed. (1:Disable,0:Enable) |
| 10 | 10 | Bit4: Notification Type, 0: Using Notification Report. 1: Using Sensor Binary Report. |
| 20 | 20 | Bit5: Disable Multi CC in auto report. (1:Disable, 0:Enable) |
| 40 | 40 | Bit6: Disable to report battery state when the device triggered.(1:Disable, 0:Enable) |
| 80 | 80 | Bit7: Reserve. |
8 - PIR Re- Detect Interval Time
In the normal mode, after the PIR motion detected, setting the re-detect time. 8 seconds per tick, default tick is 3 (24 seconds).Setting the suitable value to prevent received the trigger signal too frequently. Also can save the battery energy.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | default tick is 3 (24 seconds). |
9 - Turn Off Light Time
After turn on the lighting, setting the delay time to turn off the lighting when the PIR motion is not detected. 8 seconds per tick, default tick is 4 (32seconds).0 means never send turn off light command.Size: 1 byte
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | default tick is 4 (32seconds). |
10 - Auto Report Battery Time
The interval time for auto report the battery level. 0 means turn off auto report battery.The default value is 12. The tick time can setting by the configuration No.20.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The default value is 12. The tick time can setting by the configuration No.20. |
11 - Auto Report Door/Windo w State
The interval time for auto report the door/window state. 0 means turn off auto report door/window state.The default value is 12. The tick time can setting by the configuration No.20.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The default value is 12. The tick time can setting by the configuration No.20. |
12 - Auto Report Illumination Time
The interval time for auto report the illumination. 0 means turn off auto report illumination.The default value is 12. The tick time can setting by the configuration No.20.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The default value is 12. The tick time can setting by the configuration No.20. |
13 - Auto Report Temperature Time
The interval time for auto report the temperature. 0 means turn off auto report temperature.The default value is 12. The tick time can setting by the configuration No.20.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The default value is 12. The tick time can setting by the configuration No.20. |
20 - Auto Report Tick Interval
The interval time for auto report each tick. Setting this configuration will effect configuration No.10, No.11, No.12 and No.13.The unit is 1 minute. Caution1: Setting to 0 means turn off all auto report function. Caution2: The value is unsigned byte, the range is from 0x00 ~ 0xFF.Size: 1 byte
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The unit is 1 minute,Setting this configuration will effect configuration No.10, No.11, No.12 and No.13. |
21 - Temperature Differential Report
The temperature differential to report.0 means turn off this function. The unit is Fahrenheit.Enable this function the device will detect every minutes. And when the temperature is over 140 degree Fahrenheit, it will continue report.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | Enable this function the device will detect every minutes. And when the temperature is over 140 degree Fahrenheit, it will continue report. |
22 - Illumination Differential Report
The illumination differential to report.0 means turn off this function. The unit is percentage.Enable this function the device will detect every minutes. Enable this functionality will cause some issue please see the detail in the “Illumination Report” section.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Enable this function the device will detect every minutes. |
There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network. To add into a Z-Wave network: 1. Have Z-Wave Controller entered inclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the inclusion mode. 3. After add successful, the device will wake to receive the setting command from Z-Wave Controller about 20 seconds.
There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network. To remove the device from a Z-Wave network: 1. Have Z-Wave Controller entered exclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode. Node ID has been excluded.
There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network. Press any key once, the device will awake 10 seconds.
There are two tamper keys in the device, one is in the back side, another is in the front side. Both of them can add, remove, reset or association from Z-Wave network. To reset the device: Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON. 2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once. 3. IDs are excluded and all settings will reset to factory default.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
