Iwatsu Electric Co., Ltd.
Smart-BRIDGE CL
Smart-BRIDGE CL
Gateway
HW: 1 FW: 4.61:01.10
ZM5101
6.71.01
0x0123 (291)
0x8001 (32769)
0x0001 (1)
ZC10-17115854
2017-09-28 20:47:32.158144
N/A
Static Controller
Central Static Controller
Smart-BRIDGE CL is a Z-Wave controller to enable interaction with homes, offices and buildings.
This product is a compact gateway with build-in LAN port which can be adopt /apply to Smart Home / Nursing home Facility. It compliance with various Z-Wave peripheral equipment such as Motion, Temperature, Humidity etc. for various IoT applications.

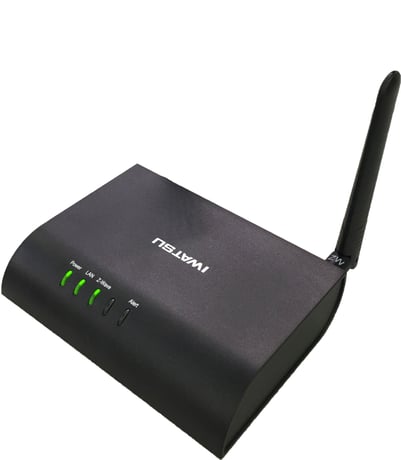

Product Picture
This equipment can be controlled via the GUI provided. To add this equipment into another Z-Wave network as a secondary controller or inclusion controller, click “Start Learn Mode” in the GUI provided.
Hold down the hardware INIT SW (over 3 seconds). A button on the GUI is present to start the reset(""Resets the Chip"" button). If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.
To add a device to the Z-Wave network, press the hardware Z-WAVE SW of this equipment once in quick (no more than 1 second between). A button on the GUI is also present to start the inclusion(""NWI"" or ""Add"" button).
To remove a device from the Z-Wave network, hold down the hardware Z-WAVE SW of this equipment (over 3 seconds). A button on the GUI is also present to start exclusion(""Start Exclusion"" button).
| Type | Value(s) |
|---|
