Oomi
Plug
FT145-K19
On/Off Power Switch
HW: 145 FW: 1.00
ZM5101
6.51.09
0x016A (362)
0x1D03 (7427)
0x0091 (145)
ZC10-17095766
2017-09-05 19:33:35.035326
N/A
Enhanced 232 Slave
Always On Slave
Oomi Plug is a plug-in on/off switch module that also provides energy metering.
Oomi Plug is a low-cost Z-Wave Switch plug-in module specifically used to enable Z-Wave command and control (on/off) of any plug-in tool. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. Its surface has a Smart RGB LED, which can be used for indicating the output load status or strength of the wireless signal. You can configure its indication colour according to your favour. The Plug is also a security Z-wave device and supports Over The Air (OTA) feature for the products firmware upgrade.

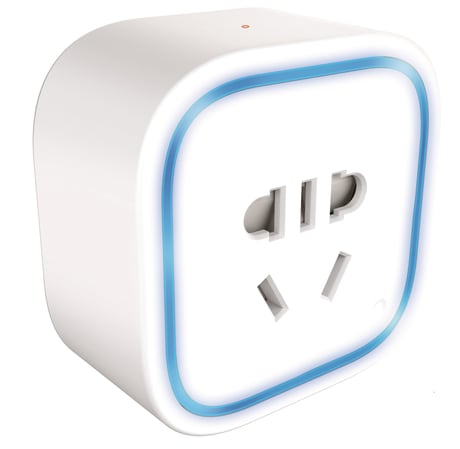

Product Picture
3 - Current Overload Protection.
Current Overload Protection. Output load will be closed after 2 minutes if the current overruns (US: 16.5A, AU: 10.5A, EU: 14A).Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Enabled |
| 0 | 0 | Disabled |
20 - Configure the output load status after re-power on
Configure the output load status after re-power onSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Always on |
| 2 | 2 | Always off |
| 0 | 0 | The last status before the power outage. |
33 - Set the RGB LED’s color for testing.
Set the RGB LED’s color for testing.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 65536 | 16711680 | Red color value |
| 256 | 65535 | Green color value |
| 0 | 255 | Blue color value |
65 - To set which report would be sent in Report group 1
To set which report would be sent in Report group 1Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2 | Send Meter Report of Current |
| 4 | 4 | Send Meter Report of Watt |
| 8 | 8 | Send Meter Report of kWh |
| 1 | 1 | Send Meter Report of Voltage |
66 - To set which report would be sent in Report group 2
To set which report would be sent in Report group 2Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Send Meter Report of Voltage |
| 2 | 2 | Send Meter Report of Current |
| 4 | 4 | Send Meter Report of Watt |
| 8 | 8 | Send Meter Report of kWh |
80 - To set which notification would be sent to the associated nodes in association group 1
To set which notification would be sent to the associated nodes in association group 1 when the state of output load is changed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Nothing |
| 1 | 1 | Hail CC |
| 2 | 2 | Basic Report CC |
81 - Configure the state of LED
Configure the state of LED when it is in Energy mode, Momentary indicate mode or Night light mode.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Energy mode. The LED will follow the status (on/off). |
| 2 | 2 | Night light mode. The LED will remain the state that is set via the Multilevel Switch Set CC or Color Switch Set CC. |
| 1 | 1 | Momentary indicate mode. When the state of Switch’s load changed, The LED will follow the status (on/off) of its load, but the LED will turn off after 5 seconds if there is no any switch action. |
83 - Configure the RGB value
Configure the RGB value when it is in Night light mode.Size: 4 bytes
Default: 1774619
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Blue color value |
| 256 | 65535 | Green color value |
| 65536 | 16711680 | Red color value |
84 - Configure the brightness level of RGB LED
Configure the brightness level of RGB LED (0%-100%) when it is in Energy Mode/Momentary indicate mode.Size: 4 bytes
Default: 3289650
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 256 | 356 | The brightness of Yellow color |
| 65536 | 65636 | The brightness of Green color |
| 0 | 100 | The brightness of Red color |
90 - Enable/disable the parameter 91 and 92
Enable/disable the parameter 91 and 92.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
91 - Induce an automatic report
The value here represents minimum change in wattage (in terms of wattage) to induce a Meter ReportSize: 2 bytes
Default: 25
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | The threshold can be set from 0 to 32767 watt. |
92 - Induce an automatic report
The value here represents minimum change in wattage percent (in terms of percentage) to induce a Meter ReportSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | The threshold can be set from 0 to 100%. |
101 - To set which report would be sent in Report group 1
To set which report would be sent in Report group 1Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Send Meter Report of Voltage |
| 2 | 2 | Send Meter Report of Current |
| 4 | 4 | Send Meter Report of Watt |
| 8 | 8 | Send Meter Report of kWh |
102 - To set which report would be sent in Report group 2
To set which report would be sent in Report group 2Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Send Meter Report of Voltage |
| 2 | 2 | Send Meter Report of Current |
| 4 | 4 | Send Meter Report of Watt |
| 8 | 8 | Send Meter Report of kWh |
103 - To set which report would be sent in Report group 3
To set which report would be sent in Report group 3Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 2 | Send Meter Report of Current |
| 4 | 4 | Send Meter Report of Watt |
| 8 | 8 | Send Meter Report of kWh |
| 1 | 1 | Send Meter Report of Voltage |
111 - Set the time interval of sending Report
Set the time interval of sending ReportSize: 4 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 2147483647 | Interval Seconds |
112 - Set the time interval of sending Report
Set the time interval of sending ReportSize: 4 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 2147483647 | Interval Seconds |
113 - Set the time interval of sending Report
Set the time interval of sending ReportSize: 4 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 2147483647 | Interval Seconds |
200 - Partner ID
Partner IDSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | Others |
| 0 | 0 | Aeon Labs Standard Product |
252 - Enable/disable Configuration Locked
Enable/disable Configuration LockedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
254 - Device Tag
Device TagSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Device Tag |
255 - Reset the Plug
Reset the Plug to factory default.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Reset all configuration parameters to default. |
| 1431655765 | 1431655765 | Reset the Plug to factory default |
Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing.
Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing.
Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable.
1, Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 2, Its surface has a Smart RGB LED, which can be used for indicating the output load status. 3, Contain NFC feature.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
