MATRIX Labs
MATRIX Creator
MATRIX.C1.EU
Hardware Device
HW: 0 FW: ERROR
ZM5202
6.71.01
N/A
N/A
N/A
ZC10-17095776
2017-09-15 18:25:25.079939
N/A
Bridge Controller
Hardware Device
MATRIX Creator is a Raspberry Pi development board with an IoT-ready platform that lets users build computer vision, home automation, robotics, and other custom hardware solutions.
MATRIX Creator is a Raspberry Pi development board with an IoT-ready platform that lets users build computer vision, home automation, robotics, and other custom hardware solutions. From a hardware perspective, MATRIX Creator is an all inclusive solution, consolidating an ultraviolet sensor, pressure sensor, 3D accelerometer, 3D gyroscope, 3D magnetometer, humidity sensor, 8 MEMs microphone array, a temperature sensor, 35 RGBW LEDs array, as well as a Xilinx Spartan 6 FPGA and an Atmel ARM Cortex M3 microcontroller. Connectivity and communication standards are equally abundant, consisting of Z-Wave, NFC, IR RX/TX, 2 ADC Channels, 17 digital GPIOs, SPI, I2C, UART. https://creator.matrix.one/

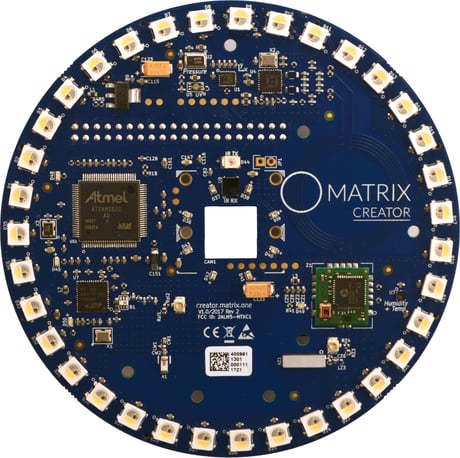

Product Picture
MATRIX Creator is a Z-Wave Plus Hardware Platform Product. It provides communication with the Z-Wave SerialAPI running on the Z-Wave module in the MATRIX Creator. Refer to Sigma design Z-Wave Specification (http://zwavepublic.com/specifications) and developer resources (http://zwavepublic.com/developer).
Please use this procedure only when the network primary controller is missing or otherwise inoperable. Factory reset should be done by software. Please refer to the documentation (https://matrix-io.github.io/matrix-documentation/API/zwave/)
For more information: - https://creator.matrix.one/ - https://matrix-io.github.io/matrix-documentation/ - https://matrix-io.github.io/matrix-documentation/API/zwave/ - https://github.com/matrix-io
MATRIX Creator is a Z-Wave Plus Hardware Platform Product. It provides communication with the Z-Wave SerialAPI running on the Z-Wave module in the MATRIX Creator. Refer to Sigma design Z-Wave Specification (http://zwavepublic.com/specifications) and developer resources (http://zwavepublic.com/developer).
MATRIX Creator is a Z-Wave Plus Hardware Platform Product. It provides communication with the Z-Wave SerialAPI running on the Z-Wave module in the MATRIX Creator. Refer to Sigma design Z-Wave Specification (http://zwavepublic.com/specifications) and developer resources (http://zwavepublic.com/developer).
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| Illuminance |
| Humidity |
| Atmospheric Pressure |
| Barometric Pressure |
| Rotation |
| Ultraviolet |
| Loudness |
| Acceleration X-Axis |
| Acceleration Y-Axis |
| Acceleration Z-Axis |
