KDDI CORPORATION

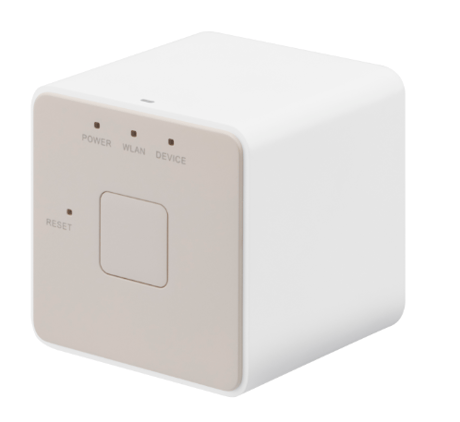

Wi-Fi Gateway
HSI01(KTS32)
Central Controller
HW: 1 FW: 0.00:01.07
ZM5304
6.51.10
0x0337 (823)
0x0001 (1)
0x0004 (4)
ZC10-17105799
2017-09-28 20:34:38.25496
N/A
Static Controller
Central Static Controller
Designed to work as residential gateway. It connects Home Wi-Fi router by WPS to connect server on internet.
This is the IoT gateway device to provide the KDDI IoT service. This also has the following features. - Wi-Fi feature as 802.11b/g/n station. - Number of USB ports: USB2.0 x 1 port. - WPS button for Wi-Fi initial setting. - Reset button for initialize all setting. - 3 types of LED for display its status.
KDDI is a JP telco and they are service provider. On End-user UI, “Learn mode” functionality is not included and this is declared in the certification form already.
It is to push the RESET button for 10 seconds. It described on uploaded manual in Japanese. It is Page 11 (Reset). The statement below also described on manual in Japanese. ""If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.""
It is to select the kinds of device by Smartphone application, and it induces to push down the program switch of device. It described on uploaded manual in Japanese. It is page 2 (Inclusion).
It is to select the kinds of device by Smartphone application, and it induces to push down the program switch of device. It described on uploaded manual in Japanese. It is page 8 (Exclusioin).
