Jintaobao

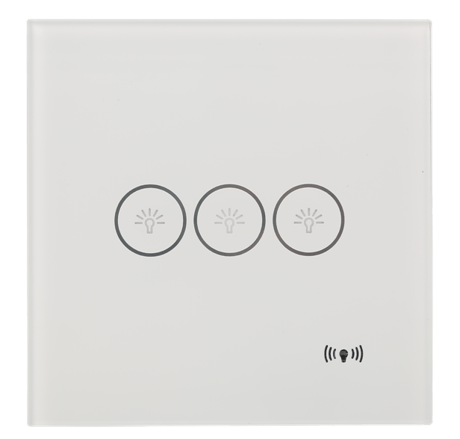

3CH Touch Wall Switch
JTB-3011-03
On/Off Power Switch
HW: 33 FW: 1.01
ZM5202
6.51.09
0x015A (346)
0x3011 (12305)
0x0003 (3)
ZC10-17115828
2017-10-31 20:33:01.375699
N/A
Routing Slave
Always On Slave
The product is designed to operate with neutral wire control three channel loads individually. Zero-cross detect function to support a large load of less than 800 Watt per channel.
The product is designed to operate with neutral wire control three channel loads individually. Zero-cross detect function to support a large load of less than 800 Watt per channel. Each channel supports associated control another multi-channel endpoint to setup multi-control switch. An individual led indicates inclusion/exclusion processing status. Standard 86 size box with 25mm depth of embedded only.
Start master controller add device mode as instruction, press and hold the channel 1 touch icon (located on leftmost) for 2 second, RF icon LED on right bottom flash indicator inclusion processing until included or 60 seconds timeout no detect any master controller.
Start master controller remove device mode as instruction, press and hold the channel 1 touch icon (located on leftmost) for 2 second, RF icon LED on right bottom flash indicator inclusion processing until included or 15 seconds timeout no detect any master controller. LED flash slowly indicated has no included any controller.
The factory default settings are restored when the device is removed from the network. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Association Group 2,4,6 is assigned to send Basic Set On frame to associated devices corresponding while channel 1,2,3 switch turn on, it can easily setup multi-control another switch turn on together. Meanwhile, association Group 3,4,7 is assigned to send Basic Set Off frame to associated devices corresponding while channel 1,2,3 switch turn off.
| Type | Value(s) |
|---|
