LG U+
Smart Button
IBDK-01
Wall Controller
HW: 1 FW: 39.40
ZM5101
6.71.01
0x014d (333)
0x0054 (84)
0x0001 (1)
ZC10-17095784
2017-09-27 04:20:05.710636
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Smart Button is a button device which extends the world of Z-Wave network.
Smart Button enables prompt access to the pre-defined operations such as turning all lights off, sending emergency notification to family members, and welcoming guests and so on.

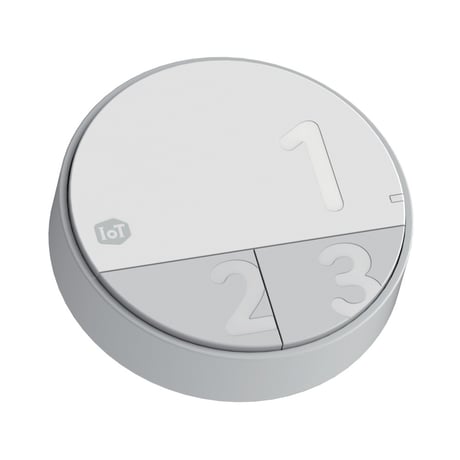

Product Picture
1. Open battery cover. 2. Press and hold the button there
Please excute this reset procedure only when the primary controller is missing or inoperable. 1. Open battery cover. 2. Press and hold the button there 3. LED is turned on after 5 seconds. Keep holding. 4. LET starts blinking after 10 seconds. 5. Release the button when the LED blinks
0. Put Controller into inclusion mode 1. Open battery cover 2. Press and hold the button there 3. LED is turned on after 5 seconds 4. Release the button when the LED is turned on
0. Put Controller into exclusion mode 1. Open battery cover 2. Press and hold the button there 3. LED is turned on after 5 seconds 4. Release the button when the LED is turned on
| Type | Value(s) |
|---|
