Danalock
Danalock V3-BTZH-JP
Danalock V3-BTZH-JP
Door Lock - Keypad
HW: 2 FW: 1.02:00.07
ZM5202
6.71.01
0x010E (270)
0x0009 (9)
0x0001 (1)
ZC10-17105803
2017-10-05 17:43:04.475993
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Z-Wave Controlled door lock with Bluetooth Smart.
Danalock supports: - S0/S2 Z-Wave Security - Bluetooth Smart - Twist Assist - Auto Lock - Hold And Release - Back To Back

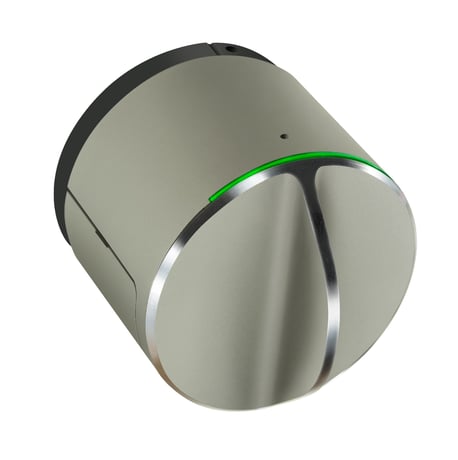

Product Picture
1 - Twist Assist
Helps you to lock and unlock your door lock.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 1 | Enabled |
2 - Hold and Release
After a unlock operation the lock holds the lock, so the door can be openedSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 2147483647 | Enable no. of seconds |
3 - Block to Block
The lock will run the motor until it hits resistance.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
4 - BLE Temporary Allowed
The BLE is enabled for a number of seconds.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | |
| 1 | 2147483647 | Enable no. of seconds |
5 - BLE Always Allowed
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | BLE Always disabled |
| 1 | 1 | BLE Always enabled |
6 - Autolock
Lock after an unlock. The value is the delay in time before the lock is locked again.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Diable |
| 1 | 2147483647 | Enable no. of seconds |
1. Set the controller in inclusion mode 2. Push the switch once. 3. Wait 5 seconds.
1. Set the controller in exclusion mode 2. Push the switch once. 3. Wait 5 seconds.
The Danalock can be set to factory settings by pushing the switch ten times. Please use this procedure only when the primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
