GoControl
Z-Wave Garage Door Controller
GD00Z-7
Barrier Operator
HW: 3 FW: 0.89:00.27
ZM5202
6.71.00
0x014F (335)
0x4744 (18244)
0x3531 (13617)
ZC10-17115876
2017-11-22 04:38:09.319803
N/A
Enhanced 232 Slave
Always On Slave
The GoControl GD00Z-7 is the next iteration of the best selling line of Z-Wave controlled remote garage door status indicator and activator. Adding S2 security and OTA capability.
The GoControl GD00Z-7 is the next iteration of the best selling line of Z-Wave controlled remote garage door status indicator and activator. Adding S2 security and OTA capability, the GD00Z-7 continues to Nortek’s leadership positing in the IOT market. Open or close a sectional garage door remotely through a Z-Wave certified Gateway or Security Panel. Compatible with virtually any garage door opener connected to a sectional garage door. Audible and visual warnings prior to remotely-activated door movement, meeting UL 325 safety requirements. Included tilt sensor reports door "open" or "close" information.

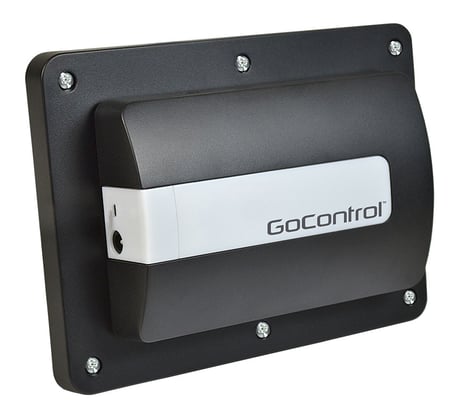

Product Picture
1. Place your Z-Wave Controller into Discovery or Include mode. 2. Press and release the link button on the GD00Z-7.
1. Place your Z-Wave Controller into Exclude mode. 2. Press and release the link button on the GD00Z-7.
Reset the GD00Z-7 by pressing the LINK button 5 times. A quick beep followed by a longer beep will indicate the reset. Reset should only be used in the case of a missing or inoperative primary controller.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
