Hank
Flood Sensor
HKZW-FLD01
Notification Sensor
HW: 1 FW: 1.01
ZM5202
6.71.01
0x0208 (520)
0x0200 (512)
0x000F (15)
ZC10-17125894
2017-11-17 15:56:06.791417
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Flood Sensor is capable of both detecting leaks and floods and when the level of water gets too low in pool or tank,
Flood Sensor is capable of both detecting leaks and floods and when the level of water gets too low in pool or tank, Flood Sensor can work with your z-wave network to prevent emergencies such as burst water boiler to leaking air conditioners. With Z-Wave, the scope to save money is endless. The features list: 1) Z-Wave Plus certified for wide compatibility (500 serials product). 2) Security 0 and security 2 framework implemented with AES-128 encryption. 3) Contains an extension water detecting probe. 4) Temperature measurement. 5) Vibration sensor. 6) The battery life is up to 1 year. 7) Low battery alert

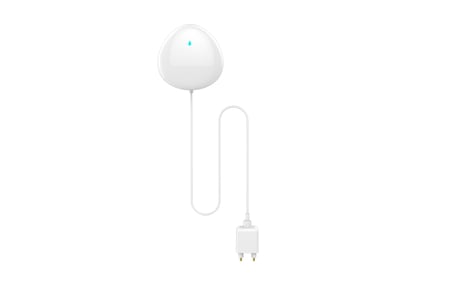

Product Picture
14 - ENABLE/DISABLE BASIC SET COMMAND
Flood sensor can send BASIC SET command to nodes associated with group 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
15 - VALUE OF THE BASIC SET
Flood sensor can reverse its value of BASIC SET when flooding is triggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Send BASIC SET VALUE = 255 to nodes associated with group 2 when flooding alarm is triggered. Send BASIC SET VALUE = 0 to nodes associated with group 2 when flooding alarm is canceled. |
| 1 | 1 | Send BASIC SET VALUE = 0 to nodes associated with group 2 when flooding alarm is triggered. Send BASIC SET VALUE = 255 to nodes associated with group 2 when flooding alarm is canceled. |
17 - Set flooding alarm interval (Minute)
Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable flooding alarm |
| -128 | 127 | The higher the value, the long the report periodically - in hexadecimal values from 0x01 to 0xFF, or 1 to 255 if your controller allows unsigned decimal values. |
18 - ENABLE/DISABLE SHOCK ALARM
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | when the value is 0, the product will not sends a vibration alarm after moving or shaking; when the value is 1, the product will sends a vibration alarm after moving or shaking |
19 - Temperature report time (minute)
The temperature changes at least 1 degree Celsius before reported.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | the higher the value ,the long the report time |
20 - Set the high temperature alarm trigger value
The precision of the temperature value is 1. Available settings(US): -670 - 2570（-67 – 257°F） Available settings(Other): -550 - 1250（-55 – 125°C） Default setting (US): 1040 (104°F) Default setting (Other): 400(40°C)Size: 2 bytes
Default: 1040
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -670 | 2570 | the larger the value , the higher the high temperature(US) |
| -550 | 1250 | the larger the value , the higher the high temperature(other) |
22 - Set the low temperature alarm trigger value
The precision of the temperature value is 1. Available settings(US): -670 - 2570（-67 – 257°F） Available settings(Other): -550 - 1250（-55 – 125°C） Default setting (US): 320 (32°F) Default setting (Other): 0 (0°C)Size: 2 bytes
Default: 320
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -670 | 2570 | the smaller the value , the lower the low temperature(US) |
| -550 | 1250 | the smaller the value , the lower the low temperature(other) |
24 - Enable/Disable blinking LED when alarm being triggered
0 –Disable. 1 –Enable.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | when the value is 0, the product will not alarm when being triggered; when the value is 1, the product will alarm when being triggered |
32 - LEVEL OF LOW BATTERY
This parameter defines a battery level as the “low battery”. Available settings: 10-50 (10% - 50%) Default setting: 20 (20%)Size: 1 byte
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | Set the trigger value for the low battery alarm |
1) Open the cover. 2) Place the device within the direct range of your Z-Wave controller. 3) Set the main controller in add mode (see the controller’s manual). 4) Click the Z-button once or triple click the Z-button quickly, the LED indicator should blink fast. 5) Wait for the adding process to end. 6) Successful adding will be confirmed by the Z-Wave controller’s message.
1) Open the cover. 2) Place the device within the direct range of your Z-Wave controller. 3) Set the main controller remove mode (see the controller’s manual). 4) Triple click the Z-button quickly, the LED indicator should blink fast. 5) Wait for the removing process to end. 6) Successful adding will be confirmed by the Z-Wave controller’s message.
Triple click the Z-button quickly，and then the dut will enter into the Learn Mode.
Press and hold the Z button for more than 5 seconds and release.
1)Power on the device, 2) Press and hold the Z button for more than 20 seconds, 3) If holding time more than 20seconds, the LED indicator will keep on for 2 seconds, which means resetting is complete. 4) The reset feature works only when the device has been included into a Z-Wave network. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | (Refer to parameters): State idle |
| Water Alarm | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
