Inovelli
Smart Plug Switch
NZW96
On/Off Power Switch
HW: 0 FW: 20.15
ZM5202
6.51.06
0x015D (349)
0x6000 (24576)
0x6000 (24576)
ZC10-17105820
2017-10-27 00:15:28.474973
N/A
Routing Slave
Always On Slave
Outdoor smart plug with a Z-Wave enabled outlet and an, "Always On" outlet. IP65 rated.
Inovelli's Outdoor Smart Plug-In On/Off Module + Repeater has the ability to turn on and off appliances, lights, and more from anywhere in the world. In addition to the outlet, the smart plug acts as a Z-Wave signal repeater, which amplifies your Z-Wave signal, growing the capabilities of your network. This smart plug also is IP65 rated for outdoor use and has 1 Z-Wave Outlet and an "Always On" (non-smart outlet), allowing you to have a remote controlled switch while not losing a non-smart outlet. Simplifying lives, one smart home product at a time... that's Inovelli.

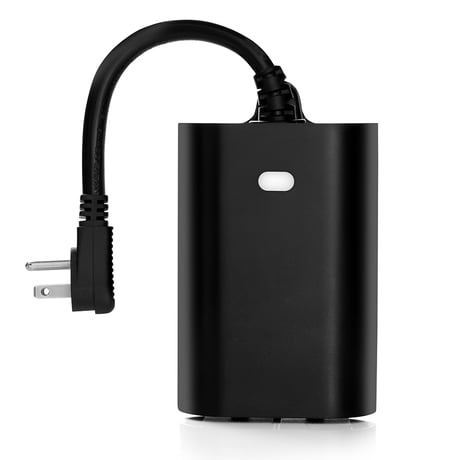

Product Picture
1 - LED Invert/Off
This will change the status of the LED light on the front of the plug. You can invert the LED or disable it. Default state of the LED is that when the plug is turned on, the LED is turned on.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Plug On / LED On |
| 1 | 1 | Plug On / LED Off |
| 2 | 2 | LED Disabled |
2 - Auto Shut-off
This will allow you to input an auto-shut-off timer. Example would be if you want your plug to always turn off after 3 hours regardless. The range is 0-36000 seconds.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
Primary inclusion method is via, ""Auto-Inclusion"". Start the inclusion process on your HUB/Gateway and then plug in the device. You will have 30 seconds before the device times out. The backup method is pressing the button on the front 5 times within 1 second.
Press the front button 5 times within 1 second.
Please use your controller to remove the device from the network. To factory reset, hold down the manual button (A) for five (5) seconds when powered on. However, please only use this method if your controller is missing or inoperable.
Remembers last power state, high temperature protection, invert LED, disable LED, automatic shutoff after x seconds
| Type | Value(s) |
|---|
