Inovelli
Door/Window Sensor
NZW1201
Notification Sensor
HW: 1 FW: 20.15
ZM5202
6.51.06
0x015D (349)
0xB003 (45059)
0xC11C (49436)
ZC10-17105822
2017-10-27 18:21:26.633995
N/A
Routing Slave
Reporting Sleeping Slave
Yes
Door & Window + Temperature Z-Wave Plus Sensor.
Inovelli's Door/Window + Temperature Sensor brings the best of both worlds. Monitor your door or window as well as the temperature! This smart sensor is one of the smallest Z-Wave Plus sensors on the market and comes with a battery (CR14250) as well as adhesive to mount. In addition, step by step video and written instructions can be found on our website for easy installation. Simplifying lives, one smart home product at a time... that's Inovelli. *Please see our Amazon or our website for compatible HUB's (not all HUB's support temperature reading).

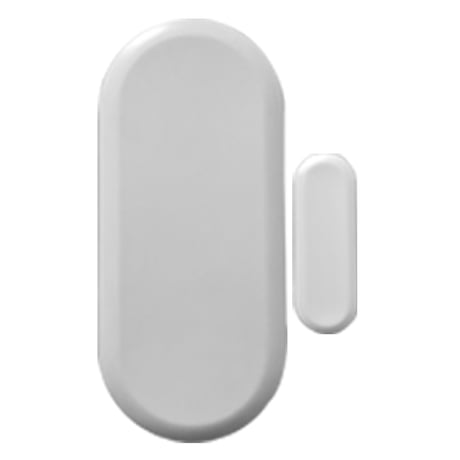

Product Picture
First put your Z-Wave enabled HUB in inclusion mode. Next, insert the battery and it will automatically connect to your HUB. If it does not automatically connect after 30 seconds, press the manual button three (3) times.
Put your HUB in exclusion mode and press the manual button three (3) times.
Press the button just above the battery.
Please use a certified controller to remove the device from your network to factory default. Or, to manually remove your device, hold down the button for 5 seconds. Only use this procedure in the event that the network primary controller is missing or otherwise inoperable.
Manually set the polling time (see instructions for more details).
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
