Ring
Ring Range Extender
Range Extender
Repeater
HW: 1 FW: 1.02
ZM5101
6.71.01
0x0346 (838)
0x0401 (1025)
0x0101 (257)
ZC10-18066142
2018-06-11 22:23:25.993172
N/A
Enhanced 232 Slave
Always On Slave
Ring Z-Wave network extender is used to increase the range and reliability of the Z-Wave network.
The Ring Protect security system is Ring’s entry into the DIY security solution space intended to provide customers with a Ring-branded, unique and simplified home security system. Ring Protect features a Z-Wave network extender which will be used to increase the range and reliability of the Z-Wave network. The network extender will be included in the professionally monitored alarm system.

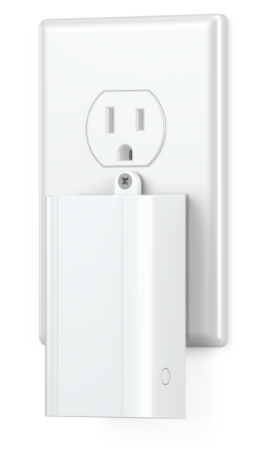

Product Picture
1 - Battery Report
This parameter sets how often the device sends battery reports to the Main Controller. It can be set to any value from 5 ~ 70 minutes in 1 minute increments.Size: 1 byte
Default: 46
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 4 | 46 | minutes |
Ring Range Extender can be added via SmartStart or via classic inclusion mode – SmartStart Inclusion Steps: 1. Initiate add range extender flow in the Ring Alarm mobile application – Follow the guided add flow instructions provided in the application 2. Scan the QR code found on the package of the range extender or the QR code found on the back of the range extender 3. Plug in the range extender to line power 4. When the inclusion process in complete, the LED on the range extender will be solid blue, then go out. Classic Inclusion Steps: 1. Initiate add range extender flow in the Ring Alarm mobile application – Follow the guided add flow instructions provided in the application 2. Select add manually and enter the 5 digit DSK pin found on the package of the range extender or the QR code found on the back of the range extender 3. Plug in the range extender to line power 4. Press and hold the push button for three seconds and release 5. When the inclusion process in complete, the LED on the range extender will be solid blue, then go out.
Exclusion Instructions: 1. Initiate remove range extender flow in the Ring Alarm mobile application – Select the settings icon from device details page and choose “Remove Device” 2. Press and hold the push button for three seconds 3. When the exclusion process in complete, the LED on the range extender will be solid blue, then go out.
Factory Default Instructions 1. Press and hold the push button 2. Blue LED will start to blink rapidly 3. Wait for the blue LED to stop blinking then release the push button Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
