Ring
Ring Keypad
4AK1S70EN0
Entry Control Keypad
HW: 4 FW: 2.00:01.18:01.00:01.00:ERROR
ZM5101
6.81.01
0x0346 (838)
0x0101 (257)
0x0201 (513)
ZC10-18066146
2018-06-12 18:19:43.944383
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Ring Z-Wave keypad, acts as an arming station for the Ring Protect system.
Ring Protect features a Z-Wave keypad, will act as an arming station for the Ring Protect system. In addition to smartphone and web apps, the keypad provides users with an alternative interface for their alarm system. The keypad allows the user to arm and disarm their system, view system status and receive visual and audio feedback regarding system status and events. Designed for convenience, the keypad can be mounted on the wall or left on a tabletop. Additionally, a rechargeable battery and AC power option provide users with the flexibility to use the keypad in ways which work best for each individual. This keypad gives users a home arming station without having to worry about wiring, picking the right location, complicated hardware installation or making modifications to their homes. The keypad will include an interactive button interface, an informational display, a speaker, various LED lights, wall mount option, battery power, AC power option and additional features to extend control of the Ring Protect system beyond the user’s mobile device and web applications. The keypad is intended to be used as a “dumb” terminal and will be non-programmable for end users.

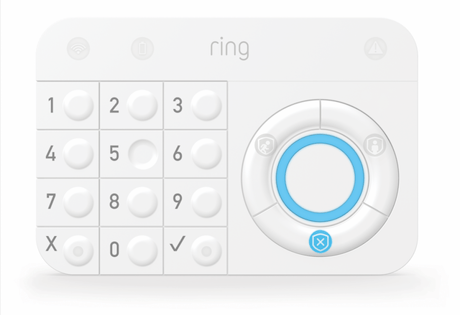

Product Picture
1 - Battery Report Interval
Battery Report Interval: Default Heartbeat check in time. Available settings: 70-1440 mins.Size: 2 bytes
Default: 70
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 70 | 1440 | minutes |
2 - Z-Wave Sleep Timeout
Z-Wave Sleep Timeout: Time to wait after receiving ZW for more OTA messages. Available settings: 1-3 secondsSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | seconds |
3 - Co-Proc Is Alive
Co-Proc Is Alive: Base Station check to see if the co-proc is operational. 0 = No 1 = YesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Life status |
4 - Proximity Timeout
Proximity Timeout : Timeout when proximity is detected and no input is received. Available settings: 0-30 secondsSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30 | seconds |
5 - Button Press Timeout
Button Press Timeout : Timeout when a button is pressed, but a sequence is not completed and buttons are no longer being pressed Available settings: 0-30 secondsSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30 | seconds |
6 - Status Change Timeout
Status Change Timeout: Available settings: 10-60 secondsSize: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 60 | seconds |
7 - Power Mode
Power Mode: Set the battery power saving mode for the keypad. 0=Extended Battery Life 1=Normal Battery LifeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 70 | 1440 | mins |
| 0 | 0 | Extended Battery Life |
| 1 | 1 | Normal Battery Life |
8 - Key Backlight Timeout
Key Backlight Timeout: Timeout for keypad LED backlight to stay on between key presses. Available settings: 1-15 secondsSize: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 15 | seconds |
9 - Key Backlight Brightness
Key Backlight Brightness: Adjusts the brightness of the keypad backlight Available settings: 0-100%Size: 1 byte
Default: 25
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | percentage |
10 - Key Tone Volume
Key Tone Volume: Volume, Tone Time, Frequency Available settings: 0-10Size: 1 byte
Default: 8
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | level |
11 - Ambient Light Sensor Level
Ambient Light Sensor Level: Light threshold where keypad will stop backlighting if higher than Available settings: 0-100Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | level |
12 - Siren Volume
Siren Volume: Volume to produce loudest output, Needs to be calibrated Available settings: 50-100Size: 1 byte
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 50 | 100 | volume |
13 - Proximity On/OFF
Proximity On/OFF: Turn On and Off the Proximity Detection. 0 = off 1 = onSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | off |
| 1 | 1 | on |
14 - Proximity Distance
Proximity Distance: Adjusts the proximity distance (CM) If applicable to the product. Available settings: 0-100CMSize: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | CM |
15 - Extended Battery Life LED Brightness Adjustment
Extended Battery Life LED Brightness Adjustment: Percentage of brightness for all LEDs in “Power Mode” = Extended (needs calibration) Available settings: 0-100%Size: 1 byte
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | percentage |
16 - Reduced Battery Life LED Brightness Adjustment
Reduced Battery Life LED Brightness Adjustment: Percentage of brightness for all LEDs in ”Power Mode” = Reduced (needs calibration) Available settings: 0-100%Size: 1 byte
Default: 65
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | percentage |
17 - Fast Blink Rate
Fast Blink Rate: LSB = 0.1 sec Fast Rate Type to blink the LEDs Available settings: 0-100Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | 0.1 sec |
18 - Slow Blink Rate
Slow Blink Rate: LSB = 0.5 sec Slow Rate Type to blink the LEDs Available settings: 0-100Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | 0.5 sec |
SmartStart Inclusion Steps: 1. Initiate add keypad flow in the Ring Alarm mobile application – Follow the guided add flow instructions provided in the application 2. Scan the QR code found on the package of the keypad or the QR code found on the back of the keypad 3. Plug in the keypad to line power 4. When the inclusion process in complete, the LED on the keypad will be solid blue, then go out. 5. Test the Keypad. Any button presses would beep Classic Inclusion Steps: 1. Initiate add keypad flow in the Ring Alarm mobile application – Follow the guided add flow instructions provided in the application 2. Select add manually and enter the 5 digit DSK pin found on the package of the keypad or the QR code found on the back of the keypad 3. Plug in the keypad to line power 4. Press and hold “1” key for three seconds 5. When the inclusion process in complete, the LED on the keypad will be solid blue, then go out. 6. Test the Keypad. Any button presses would beep
Exclusion Instructions: 1. Initiate remove keypad flow in the Ring Alarm mobile application – Select the settings icon from device details page and choose “Remove Device” 2. Press and hold “1” key for three seconds 3. When the exclusion process in complete, the LED on the keypad will be solid blue, then go out. 4. Test the Keypad. Any button presses would not beep
Factory Default Instructions 1. Press and hold “5” key and using a pointed end of a paperclip, gently press and release reset button via the reset pin hole found at the back of the keypad 2. Red network LED at the top left-hand corner will start to blink rapidly 3. Wait for the red LED to stop blinking then release the “5” key Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Power Management | (Refer to parameters): State idle |
