Simon
S100 iO Master Roller Blind
10002081-13X
Wall Controller
HW: 1 FW: 4.24:76.51
ZM5202
6.51.07
0x0267 (615)
0x0005 (5)
0x0000 (0)
ZC10-18026014
2018-01-09 22:56:05.952134
N/A
Enhanced Slave
Always On Slave
Simon Master Roller Blind iO is a wall controller designed to increase the number of control points that manages roller blinds. It is designed as additional control that works over window covering devices.
Master Roller Blind IO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience. Sending the Blind controller by other window covering devices Up/Down/Stop.

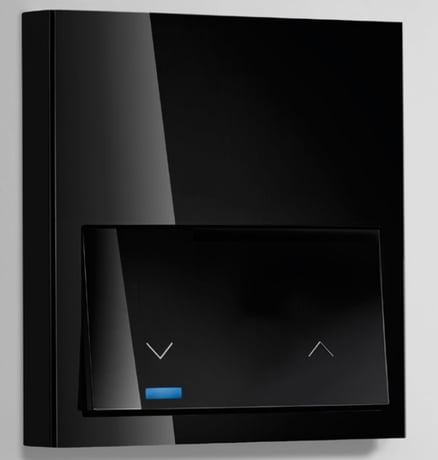

Product Picture
1 - Association LED
Activates the Central LED. Configuration Used by Masters iO in order to identify the devices associated to their Group2 during manual association process.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns Central LED OFF |
| 1 | 255 | Turns Central LED ON |
12 - Behavior of LED in Repose
Sets the Left and Right LEDs to 20% in order to find the device and the touch areas at night.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Left and Right LEDs OFF |
| 1 | 255 | Left and Right LEDs ON at 20percent |
13 - Lock Input
Locks the local control of associated devices and controller. This configuration does not modifies the control via Z-Wave, where if a Set is received it will retransmitted to all group 2 associated nodesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Local action enabled |
| 1 | 255 | Local action locked |
15 - Reset Default
Write only parameter used to restore configurations or perform a completely restore default.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 39015 | 39015 | Factory reset |
| 17170 | 17170 | Configuration values are restored |
18 - Lock Manual Assocaition
Enables or disables the manual association process.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold press of 10sec to 30sec starts manual association of devices to group 2 |
| 1 | 255 | Hold press of 10sec to 30sec sends a Node Info |
19 - Press Action
Defines the function performed by the device when keypad is pressedSize: 1 byte
Default: 7
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | short press switches between the last power on and off (depending on the status of the associated control) by sending a Basic Set to 0x00 or 0xFF to the associated nodes. The touch area does not work |
| 1 | 1 | Short press activates those associated by sending Basic Set to 0xFF |
| 2 | 2 | Short press deactivates those associated by sending Basic Set to 0x00 |
| 3 | 3 | Short Press UP always activates those associated with the last power on by sending a Basic Set 0xFF. Short Press DOWN always deactivates those associated by sending a Basic Set to 0x00. |
| 4 | 4 | Short Press always turn on the associated nodes by sending a Basic Set to 0xFF. Press from 2sec to 10sec always turns off the associated nodes by sending a Basic Set to 0x00 |
| 6 | 6 | Short pressi on UP Area, if controlled device/s already have the value set on Config Param 26, Basic Set 0x00 is sent and UP and DOWN LEDs are turned off; Otherwise Basic Set with value (Param 26) is sent and UP LED light up for 5 sec. After short pressing on DOWN Area, if controlled device/s already have the value set on Config Param 25, Basic Set 0x00 is sent and UP |
| 7 | 7 | the key works as described on keypad use and feedbaks |
20 - Identify
Write only value that performs a fast blink on Central LED during 5 seconds in order to identify the device when it is installed in a multiple frameSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Central LED performs a fast blink |
21 - Device State
Configuration used to know the device state and last dimming or sunblind position.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Load is OFF or sunblind is stopped with diming value or position x |
| 256 | 355 | Load is ON or sunblind is going DOWN with diming value or position x |
| 512 | 611 | Load is ON or sunblind is going UP with diming value or position x |
25 - Left Side Value
Value used as DOWN side value when Parameter 20 value is 6 Value is SET in hexadecimal format.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Value used as DOWN side value when Parameter 20 value is 6 in order to set the loat to the value |
| 255 | 255 | Value used as UP side value when Parameter 20 value is 6 in order to Activate Load |
26 - Right Side Value
Value used as UP side value when Parameter 20 value is 6 Value is SET in hexadecimal format.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Value used as UP side value when Parameter 20 value is 6 in order to Set Load to this value |
| 255 | 255 | Value used as UP side value when Parameter 20 value is 6 in order to Activate Load |
27 - Lock Hold Press
Locks the major part of Hold press effects in order to avoid undesired Z-Wave changes, associations or restores Default. 0xFF Hold Press from 2sec to 10 sec does not performs a Node info. Hold Press of 10 to 30 does not performs a manual association process. Hold press of 30sec restores configuration except Lock Hold Press, and sends a Node info in order to add or remove from Z-Wave Network.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold press is available |
| 1 | 255 | Hold Press is Locked |
28 - Consult on Touch
This configuration has only effects when there is only 1 associated node in group 2. Is used to set if Master has to be always informed about the controlled device state or it is consulted when user touchs the keypad.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Device must receive reports about controlled device state. |
| 1 | 255 | Device consults the device state once keypad detects touch |
29 - Send Central Scene
Disables the sending of Central Scene Notifications to avoid perform 2 actions at same time (Central Scene action and Group 2 action).Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Device does not sends Central Scene Notifications |
| 1 | 255 | Device sends Central Scene Notifications is no devices are added to group 2 |
When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters. Main LED will perform 1 Blink with 5 sec. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
When the pushbutton is released after a press of (10sec<T<30sec) the device will Set it into Manual Association Mode. Central LED will blink slow during Association mode time. Association mode allows add devices to Device Group 2. If associated devices are Simon Devices, Master will turn on Central LED to inform the user about which devices are in. Once association is finished, Master will turn off the Central LED to allow the normal use of the devices.
When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
| Type | Value(s) |
|---|
