Flood Sensor
ZW1204
Notification Sensor
HW: 1 FW: 1.01
ZM5202
6.71.01
0x015D (349)
0x2003 (8195)
0xC41C (50204)
ZC10-17115885
2017-11-29 03:54:28.013821
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
The ZW1204 is designed to used in areas where there is a potential for water leaks – dishwashers, washing machines, hot water tanks, air conditioner condensation drip pans, etc. After mounted properly it can monitor whether water is leaking into areas.
The ZW1104 is designed to used in areas where there is a potential for water leaks – dishwashers, washing machines, hot water tanks, air conditioner condensation drip pans, etc. After mounted properly it can monitor whether water is leaking into areas. When water is detected, the sensor will transmit a alarm signal to control center and stop water immediately.

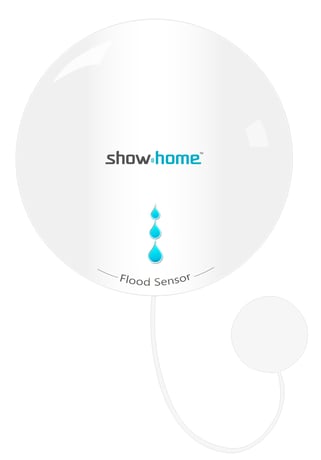

Product Picture
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press up and release the toggle to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-Wave network to optimize performance. 4. The device is associated in the same group when it included in setting process. Now you can control your Z-Wave device according to groups, scenes, schedules and automation programmed.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press up and release the toggle to exclude it from the network.
Open the shell, wake up immediately
1. Press and hold the top button for at least 3 seconds while you insert the batteries. 2. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Water Valve | (Refer to parameters): State idle |
| Sensor type |
|---|
| Water Temperature |
