Simon
S100 Master Roller Dimmer iO
10002021-13X
Wall Controller
HW: 1 FW: 4.24:79.50
ZM5202
6.51.07
0x0267 (615)
0x0008 (8)
0x0000 (0)
ZC10-18026013
2018-01-09 22:54:18.378093
N/A
Enhanced Slave
Always On Slave
Simon Master Dimmer iO is a wall controller designed to increase the number of control points that manages dimmer, switches and sockets. It is designed as additional control point to the own device controls.
Master Dimmer iO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 iO APP using the HUB plug iO for getting a better user experience. allowing the control of other Z-Wave devices via Basic Set/Get commands. Available colors Black and White. visit http://www.simon.es/simon100/ to learn more about Simon 100 iO.

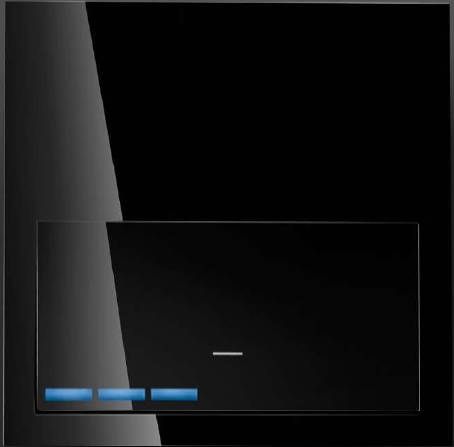

Product Picture
1 - Association LED
Activates the Central LED. Configuration Used by Masters iO in order to identify the devices associated to their Group2 during manual association process.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns Central LED OFF |
| 1 | 255 | Turns Central LED ON |
12 - Behavior of LED in Repose
Sets the Central LED to 20% in order to find the device at night.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Central LED OFF |
| 1 | 255 | Central LED ON at 20percent |
13 - Lock Input
Locks the local control of associated devices and controller. This configuration does not modifies the control via Z-Wave, where if a Set is received it will retransmitted to all group 2 associated nodesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Local control is available |
| 1 | 255 | Local control is locked |
15 - Reset Default
Write only parameter used to restore configurations or perform a completely restore default.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 17170 | 17170 | Configuration values are restored |
| 39015 | 39015 | Factory reset |
18 - Lock Manual Association
Enables or disables the manual association process.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold press of 10sec to 30sec starts manual association of devices to group 2 |
| 1 | 255 | Hold press of 10sec to 30sec sends a Node Info |
19 - Press Action
Defines the function performed by the device when keypad is pressedSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Short press switches between the last power on and off (depending on the status of the associated control) by sending a Basic Set to 0x00 or 0xFF to the associated nodes. |
| 1 | 1 | Short press activates those associated by sending Basic Set to 0xFF |
| 2 | 2 | Short press deactivates those associated by sending Basic Set to 0x00 |
| 4 | 4 | Short Press always turn on the associated nodes by sending a Basic Set to 0xFF. Press from 2sec to 10sec always turns off the associated nodes by sending a Basic Set to 0x00 |
| 5 | 5 | When Short press Master inverts the load state via Basic Set, When the slider is enabled and load is ON, Multilevel Sets are sent to modify the dimming value. |
20 - Identify
Write only value that performs a fast blink on Central LED during 5 seconds in order to identify the device when it is installed in a multiple frameSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Central LED performs a fast blink |
21 - Device State
Configuration used to know the device state and last active dimming value in case of act retransmitting values different from 0 or 0xFF. This value is represented in Hexadecimal. Byte 0 informs about Load State (0 load is OFF and 1 load is ON) Byte 1 informs about Last active load value (0-0x63 or 0xFF)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Load is OFF or sunblind is stopped with diming value or position x |
| 256 | 355 | Load is ON or sunblind is going DOWN with diming value or position x |
27 - Lock Hold Press
Locks the major part of Hold press effects in order to avoid undesired Z-Wave changes, associations or restores Default. 0xFF Hold Press from 2sec to 10 sec does not performs a Node info. Hold Press of 10 to 30 does not performs a manual association process. Hold press of 30sec restores configuration except Lock Hold Press, and sends a Node info in order to add or remove from Z-Wave NetworkSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold press is available |
| 1 | 255 | Hold Press is Locked |
28 - Consult on Touch
This configuration has only effects when there is only 1 associated node in group 2. Is used to set if Master has to be always informed about the controlled device state or it is consulted when user touches the keypad.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Device must receive reports about controlled device state |
| 1 | 255 | Device consults the device state once keypad detects touch |
29 - Send Central Scene
Disables the sending of Central Scene Notifications to avoid perform 2 actions at same time (Central Scene action and Group 2 action).Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Device does not sends Central Scene Notifications |
| 1 | 255 | Device sends Central Scene Notifications is no devices are added to group 2 |
When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters. Main LED will perform 1 Blink with 5 sec. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
When the pushbutton is released after a press of (10sec<T<30sec) the device will Set it into Manual Association Mode. Central LED will blink slow during Association mode time. Association mode allows add devices to Device Group 2. If associated devices are Simon Devices, Master will turn on Central LED to inform the user about which devices are in. Once association is finished, Master will turn off the Central LED to allow the normal use of the devices.
When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
| Type | Value(s) |
|---|
