Simon
S100 Socket iO
10002041-13X
On/Off Power Switch
HW: 1 FW: 4.24:68.49
ZM5202
6.51.07
0x0267 (615)
0x0009 (9)
0x0000 (0)
ZC10-18026012
2018-01-09 22:53:07.755783
N/A
Enhanced Slave
Always On Slave
Simon Socket iO is a socket that allows increase the installation functions and features.
Socket iO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 iO APP using the HUB plug iO for getting a better user experience. allowing the control of the socket and LEDs integrated. Available colors Black and White. visit http://www.simon.es/simon100/ to learn more about Simon 100 iO.

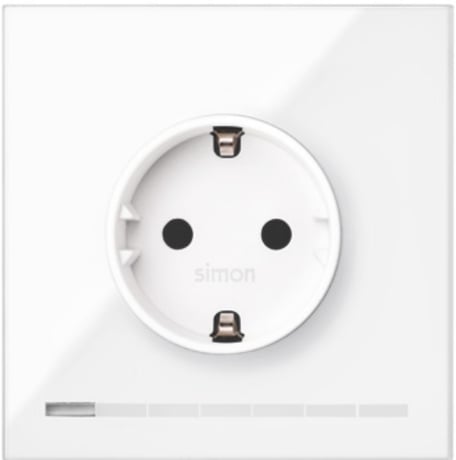

Product Picture
1 - Association LED
Activates the Central LED. Configuration Used by Masters iO in order to identify the devices associated to their Group2 during manual association process.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns Central LED OFF |
| 1 | 255 | Turns Central LED ON |
3 - Beacon
Sets the beacon intensity, turning ON all Device LEDs al percentage set in this configuration.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables the beacon |
| 1 | 99 | Sets the intensity of the beacon LEDs |
10 - Delay ON
Sets a delay from activation request until the activation is performed. This configuration must be set in Hexadecimal values. 0x00 disables the delay. 0x01 to 0x7F sets the delay in seconds from 1 to 127 0x80 to 0xEF sets the delay in minutes from 1 to 127Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Delay is disabled |
| 1 | 127 | Sets the delay in seconds from 1 to 127 |
| 256 | 254 | Sets the delay in minutes from 1 to 127 |
11 - Activation Time
Sets the time when the load will be turned off after it is activated. This configuration must be set in Hexadecimal values. 0x00 disables the delay. 0x01 to 0x7F time is set in seconds from 1 to 127 0x80 to 0xEF time is set in minutes from 1 to 127Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Time is disabled |
| 1 | 127 | Time is set in seconds from 1 to 127 |
| 128 | 254 | Time is set in minutes from 1 to 127 |
12 - Behavior of LED in Repose
Modifies the LED1 state when Socket iO is in repose mode.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED1 remains OFF and only informs of load state during 5 sec. after pressing the button. |
| 1 | 255 | LED1 always shows the load state |
13 - Lock Input
Locks the local control of the load. This configuration does not modifies the control via Z-Wave.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Local control is available |
| 1 | 255 | Local control is locked |
15 - Reset Default
Write only parameter used to restore configurations or perform a completely restore default.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 17170 | 17170 | Configuration values are restored |
| 39015 | 39015 | Factory reset |
16 - Delay OFF
Sets a delay from deactivation request until the deactivation is performed. This configuration must be set in Hexadecimal values. 0x00 disables the delay. 0x01 to 0x7F sets the delay in seconds from 1 to 127 0x80 to 0xEF sets the delay in minutes from 1 to 127Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Delay is disabled |
| 1 | 127 | Sets the delay in seconds from 1 to 127 |
| 128 | 254 | Sets the delay in minutes from 1 to 127 |
17 - PostReset State
Sets the device state after a reset.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | After a reset the load starts Off |
| 1 | 255 | After a reset the load recovers the last value |
19 - Press Action
Defines the function performed by the device when keypad is pressedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Short press toggles the load |
| 1 | 1 | Short press activates the load |
| 2 | 2 | Short press deactivates the load |
20 - Identify
Write only value that performs a fast blink on Central LED during 5 seconds in order to identify the device when it is installed in a multiple frameSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Central LED performs a fast blink |
21 - Device State
Read only Configuration used to report the device state and last value This value is represented in Hexadecimal. Byte 0 informs about Load State (0 load is OFF and 1 load is ON) Byte 1 informs about Load value (0x00 or 0xFF)Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Load is OFF |
| 511 | 511 | Load is ON |
27 - Lock Hold Press
Locks the major part of Hold press effects in order to avoid undesired Z-Wave changes, or restores Default. 0xFF Hold Press from 2sec to 30 sec does not performs a Node info. Hold press of 30sec restores configuration except Lock Hold Press, and sends a Node info in order to add or remove from Z-Wave NetworkSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold press is available |
| 1 | 255 | Hold Press is Locked |
When the pushbutton is released after a press of (2sec<T<30sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (2sec<T<30sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters. Main LED will perform 1 Blink with 5 sec. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
