Inovelli
In-wall Smart Switch
NZW30
On/Off Power Switch
HW: 1 FW: 20.15
ZM5202
6.51.06
0x0312 (786)
0x0111 (273)
0x1E1C (7708)
ZC10-17115842
2017-11-09 19:08:28.291078
N/A
Routing Slave
Always On Slave
In-Wall Z-Wave Plus Smart Switch (On/Off) with Scene Capabilities.
Inovelli's In-Wall Smart Switch (On/Off) not only has the ability to turn on and off appliances, lights, and more from anywhere in the world, but it acts as a Z-Wave signal repeater, which amplifies your Z-Wave signal, growing the capabilities of your network. In addition, it has scene control enabled, which allows you to double tap the switch to activate a Z-Wave scene. An example would be a bedtime scene, which turns off all lights, locks the door(s) and sets the temperature to 68 degrees. Simplifying lives, one smart home product at a time... that's Inovelli.

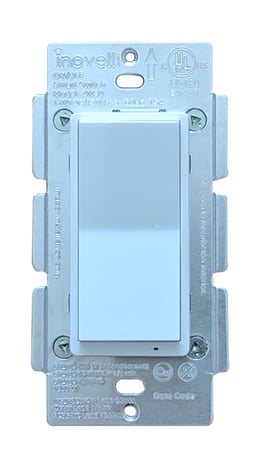

Product Picture
Primary inclusion method is via, ""Auto-Inclusion"". Start the inclusion process on your HUB/Gateway and then turn the circuit breaker back on to your switch to restore power. You will have 30 seconds before the device times out. The backup method is pressing the Top button on the switch 6 times within 2 seconds.
Tap the UP/Top button on the switch 6 times within 2 seconds.
Please use your controller to remove the device from the network. To factory reset, hold the UP button for five (5) seconds when powered on. However, please only use this method if your controller is missing or inoperable.
| Type | Value(s) |
|---|
