Honeywell
Plug-in Switch (Single Plug)
39337 / ZW4103
On/Off Power Switch
HW: 255 FW: 5.23
ZM5202
6.51.10
0x0039 (57)
0x5052 (20562)
0x3038 (12344)
ZC10-17115839
2017-11-09 18:10:39.531159
N/A
Enhanced 232 Slave
Always On Slave

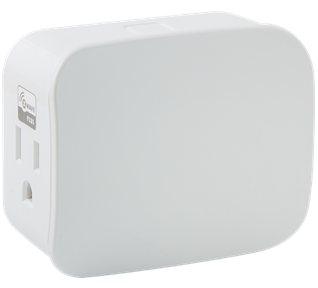

Transform any home into a smart home with the Honeywell Z-Wave Plug-in Switch.
Transform any home into a smart home with the Honeywell Z-Wave Plug-in Switch. The Smart Control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with Honeywell Z-Wave Smart Controls!
3 - LED Light
LED light off when device is turned off (default)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | LED light on when device is on |
| 2 | 2 | LED light always on |
1. Follow the instructions for your Z-Wave certified controller to include the device to the Z-Wave network. 2. Once the controller is ready to include your smart switch, single press and release the manual/program button on the smart dimmer to include it in the network. 3. Once your controller has confirmed that the smart switch has been included, refresh the Z-Wave network to optimize performance.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to exclude your device, press and release the manual/program button on the smart switch to exclude it from the network.
1. If plugged in, unplug the device from the receptacle. 2. Press and hold the top button, plug the device in, and continue to hold for at least 3 seconds. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
