Honeywell
Plug-in Switch (Dual Plug Simultaneous Control)
39342 / ZW4106
On/Off Power Switch
HW: 255 FW: 5.22
ZM5202
6.51.10
0x0039 (57)
0x5052 (20562)
0x3033 (12339)
ZC10-17115840
2017-11-09 18:11:37.779754
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Honeywell Z-Wave Smart Controls.
Transform any home into a smart home with the Honeywell Z-Wave Switch and Appliance Module. The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides dual simultaneous Z-Wave enabled outlets for the lamp or appliance that you would like to control. Perfect for plug-in fans, lamps, and more! Take control of your home lighting with Honeywell Z-Wave Smart Controls!

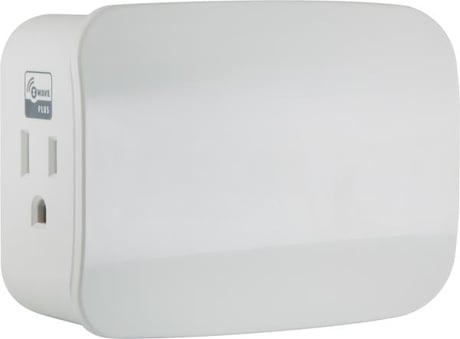

Product Picture
3 - LED Light
When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | On |
| 2 | 2 | Off |
Adding your device to a Z-Wave network: 1. Follow the instructions for your Z-Wave certified controller to include the device to the Z-Wave network. 2. Once the controller is ready to include your smart switch, single press and release the manual/program button on the smart switch to include it in the network. Now you have complete control to turn your lamp ON/OFF according to groups, scenes, schedules and interactive automations programmed by your controller. If your Z-Wave certified controller features Remote Access, you can now control your lighting from your mobile devices
To exclude and reset the device: 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press and release the manual/program button on the smart switch to exclude it from the network.
To return your switch to factory defaults: 1. If plugged in, unplug the device from the receptacle. 2. Press and hold the top button, plug the device in, and continue to hold for at least 3 seconds. Note: This should only be used in the event your networks’ primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
