show home
Outdoor Smart Plug - 1 channel
ZW96
On/Off Power Switch
HW: 255 FW: 1.255
ZM5202
6.71.01
0x015D (349)
0x0211 (529)
0x601C (24604)
ZC10-17125895
2017-11-16 00:45:42.357199
N/A
Enhanced 232 Slave
Always On Slave
The ZW96 is a Z-Wave enabled device and is fully compatible with any Z-Wave Plus enabled network,Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal
The ZW96 is a Z-Wave enabled device and is fully compatible with any Z-Wave Plus enabled network,Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal around obstacles and radio dead spots to ensure that the signal is received at its intended destination.

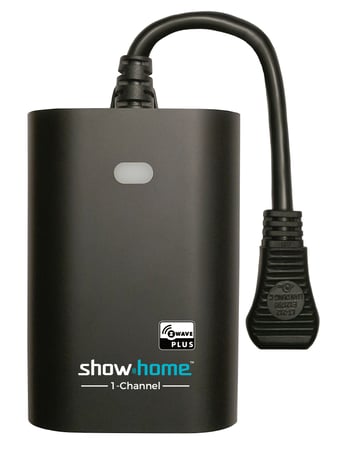

Product Picture
1 - LED
LED indicator status modificationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | 0----outlet on,led on.1----outlet on ,led off.2-----led no work . |
2 - TIMER
Timing automatic shutdownSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 36000 | Timer Value |
1:Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. 2:When prompted by your primary controller, click the PROG button five times in one second.
1:Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. 2:When prompted by your primary controller, click the PROG button five times in one second.
---Power off ZW96 ---keep holding the PROG button ---Power on,Press and keep holding the PROG button for no less than 10 seconds. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | (Refer to parameters): State idle |
