Axis Communications
Power On/Off Plug
T8344
On/Off Power Switch
HW: 1 FW: 1.01:00.01
SD3502
6.71.01
0x0364 (868)
0x0004 (4)
0x0001 (1)
ZC10-17115878
2017-11-22 04:38:53.443736
N/A
Enhanced 232 Slave
Always On Slave
AXIS T8344 is a wireless power plug enabling remote on/off switching of lamps and other devices and acts as a repeater increasing the distance between the controller and the Z-wave Plus® devices.
AXIS T8344 is a wireless power plug enabling remote on/off switching of lamps and other devices. With its support for wireless input/output connectivity, the power on/off plug can communicate wirelessly with AXIS M5065 PTZ Network camera or other connected Z-Wave Plus® controllers, creating a small security solution with less cabling. Thanks to its integrated wireless I/O connectivity, AXIS T8344 enables flexible installation as the relay can easily be moved and adapted to your needs. Designed to act as a repeater, AXIS T8344 increases the distance between the controller and the Z-wave Plus® devices by up to 100m.

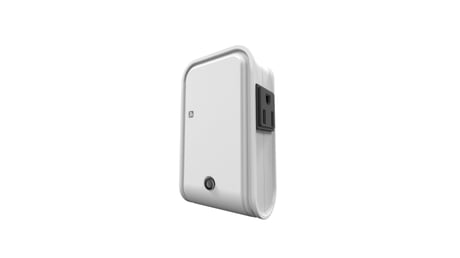

Product Picture
3 - Remember the last status
1: remember (0: do not remember)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | 1: remember |
1. Put the Z-Wave Controller into Inclusion mode. 2. Press the On/Off knob 3 times within 1.5 seconds to put the unit into Inclusion mode.
1. Put the Z-Wave Controller into Exclusion mode. 2. Press the On/Off knob 3 times within 1.5 seconds to put the unit into Exclusion mode.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1. Press the On/Off knob 3 times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press and hold the knob for 5 seconds. 3. Node ID is deleted. The device reverts to factory default state.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
