Axis Communications
Alert Button
T8343
Notification Sensor
HW: 1 FW: 1.01:00.01
SD3502
6.71.01
0x0364 (868)
0x0005 (5)
0x0001 (1)
ZC10-17115879
2017-11-22 04:40:26.066534
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
AXIS T8343 Alert Button is a wireless push button which relays events such as notification messages, illumination and much more.
AXIS T8343 Alert Button is a wireless push button which relays events such as notification messages, illumination and much more. With its support for wireless input/output connectivity, the alert button can communicate wirelessly with AXIS M5065 PTZ Network camera or other connected Z-Wave Plus® controllers, creating a small security solution with less cabling. Thanks to its integrated wireless I/O connectivity, AXIS T8343 enables flexible installation as the relay can easily be moved and adapted to your needs.

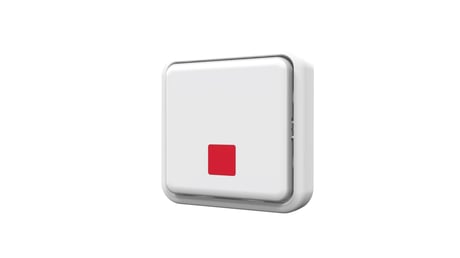

Product Picture
1. Put the Z-Wave Controller into inclusion mode. 2. Press the link button 3 times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-Wave Controller into exclusion mode. 2. Press the link button 3 times within 1.5 seconds to put the unit into exclusion mode.
After it has been included into a Z-wave network, the detector will go to sleep but will send a Wakeup Notification Command periodically at preset period to the controller. The detector will stay awake for 10 seconds at least and then go back to sleep to conserve battery life. The time interval between Wakeup Notification Commands can be set in the Wakeup Command Class based on the range values below: Minimum Wake Up Interval 600s (10 minutes) Maximum Wake Up Interval 86400s (1 day) Default Wake Up Interval 14400s (4 hours) Wake Up Interval Step Seconds 600s (10 minutes)
Please use this procedure only when the network primary controller is missing or otherwise inoperable. 1. Press the link button 3 times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press the link button again and hold for 5 seconds. 3. Node ID is excluded. The device reverts to factory default state.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Appliance | (Refer to parameters): State idle |
