Axis Communications
Door/Window Sensor
T8342
Notification Sensor
HW: 1 FW: 1.01:00.01
SD3502
6.71.01
0x0364 (868)
0x0003 (3)
0x0001 (1)
ZC10-17115881
2017-11-22 04:50:21.177127
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
AXIS T8342 Door/Window Sensor is an easy to install, wireless sensor which enables triggering of a series of events such as notification messages, illumination and much more.
AXIS T8342 Door/Window Sensor is an easy to install, wireless sensor which enables triggering of a series of events such as notification messages, illumination and much more. With its support for wireless input/output connectivity, the door/window sensor can communicate wirelessly with AXIS M5065 PTZ Network camera or other connected Z-Wave Plus® controllers, creating a small security solution with less cabling. Thanks to its integrated wireless I/O connectivity, AXIS T8342 enables flexible installation as the sensor can easily be mounted on a door, window, or cabinet according to your needs.

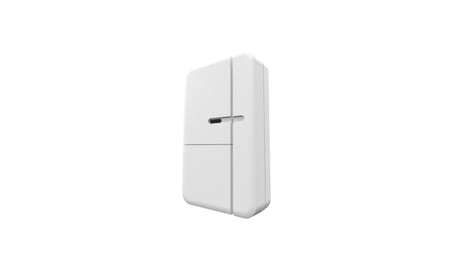

Product Picture
1. Put the Z-Wave Controller into inclusion mode 2. Press the tamper switch 3 times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-Wave Controller into exclusion mode. 2. Press the tamper switch 3 times within 1.5 seconds to put the unit into exclusion mode.
After the detector has been included into a Z-wave network it will go to sleep, but it will send a wake-up notification command to the controller periodically at a preset period . The motion detector will stay awake for at least 10 seconds and then go back to sleep to conserve battery life. The time interval between wake up notification commands can be set in the wake up command class based on the range values below: Minimum wake up interval 600s (10 minutes) Maximum wake up interval 86400s (1 day) Default wake up interval 14400s (4 hours) Wake up interval step seconds 600s (10 minutes)
This procedure should only be used when the controller is inoperable. 1. Press the tamper switch 3 times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press the tamper switch again and hold for 5 seconds. 3. Node ID is excluded. The device reverts to factory default state.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
