Mercury
Door Sensor
MC01-1702OPS
Notification Sensor
HW: 1 FW: 1.01
ZM5101
6.61.01
0x022D (557)
0x0401 (1025)
0x0101 (257)
ZC10-17125911
2017-12-20 01:01:09.669448
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
MC01-1702OPS offers information whether a door is open or closed.
MC01-1702OPS offers information whether a door is open or closed. This is a battery-powered device, which is in sleeping mode unless an action is detected. After a programmable sleeping time the device wakes up and sends a status information. After this the unit goes back to sleeping mode. Batteries can be changed with screwing the device from the frame. The device needs to be included into a Z-Wave network by the Z-Wave controller.

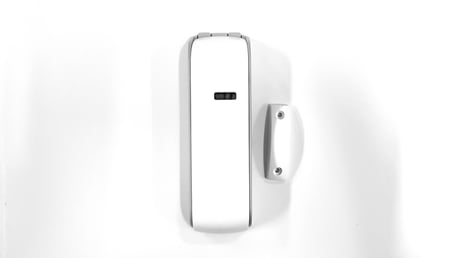

Product Picture
1) Put the Z-Wave Controller into inclusion mode 2) Press the Push button one time in door sensor
1) Put the Z-Wave Controller into exclusion mode 2) Press the Push button three times in door sensor
There are 2 ways; When press the Push button two times when the door state changes, e.g,. Open or Close -Minimum Wake Up Interval : 0 seconds -Maximum Wake Up Interval : 4200 seconds(70 minutes) -Default Wake Up Interval : 4200 seconds(70 minutes) -Wake Up Interval Step Seconds : 10 seconds
1) Press the Push button for more than 10 seconds 2) Verify that LED is blinking one time ※ Please use this procedure only when the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
