Glamo Inc.
GSL-01ZW
Glamo Lock
Door Lock - Keypad
HW: 1 FW: 1.03:01.03
ZM5202
6.71.01
0x0348 (840)
0x0003 (3)
0x0001 (1)
ZC10-17125904
2017-12-13 21:16:16.735012
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
GSL-01ZW is robust, highly sophisticated multi functional smart deadbolt solution.
GSL-01ZW can lock/unlock the deadbolt by numeric keypad, the smartphone and IC card equipped with NFC and FeliCa. Also it can trigger home appliance actions such as lighting, TV, air conditioner. In conjunction with locking / unlocking through Glamo's "iRemocon" smart gateway, and also supports remote locking, deadbolt state reporting, and issuing time-based PIN code. Wireless communication with the device is encrypted, anti-forgery NFC key-card are used as its master key, and also tough metal housing is adopted. When trying to unlock "GSL-01ZW(L)" forcedly or when overyly high temperature due to fire is detected, an alert will be raised. Since "GSL-01ZW(L)" is connected with cloud side Glamo key management system, and is capable of insert, remove key data based on the system requests. It can be integrated with the existing property management enterprise and automated thus its system management cost can be greatly reduced.

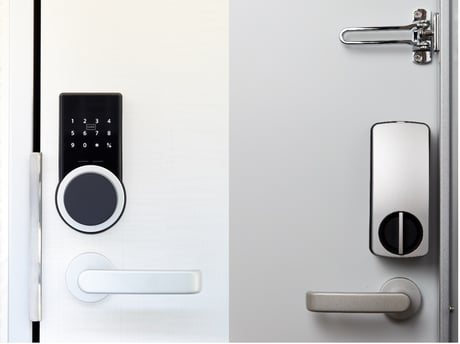

Product Picture
1 - Get State
Get the status of Lock. It is read-only and can not be changed. mode 0-2bit 000: Normal mode 001: Pairing mode 010: Master key registration mode 011: Key registration mode 100: Door opening mode ・alarm 3-5bit 000: Alarm pattern 1 001: Alarm pattern 2 010: Alarm pattern 3 011: Fire occurred 100: I forcibly unlocked and tried to destroy 101: Door open condition warning / 111: No alarm ・Malfunction 6bit 0: No failure 1: FaultySize: 1 byte
Default: 56
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | mode (0-2bit) |
| 0 | 1 | malfunction (6bit) |
| 0 | 5 | alarm (3-5bit) |
3 - Delete all key data
Delete key data other than master key data. 0: Default value 1: Delete execution 2: Delete complete 3: Delete error 4: time outSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Delete Flag |
4 - Delete all logs
Delete all saved logs. 0: Default value 1: Delete execution 2: Delete complete 3: Delete error 4: time outSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | Delete flag |
301 - Alarm setting 1/6
●1byte ・Alarm number 1byte 0x01: Default value 0x01: pattern１ 0x02: pattern２ 0x03: pattern３ ●2-3byte ・Ring time 2byte 0x001E: Default value 0x0001-0x0E10: Setting range ●4byte ・Reject reason / Release result 1byte 0x00: Unlock successful 0x01: Invalid key ID 0x02: Invalid key data 0x03: Incorrect combination of key ID and key data 0x09: Key ID, key data not specified (default value) " 0xFE: time out 0xFF: Key ID, initial value with key data specificationSize: 4 bytes
Default: 16785151
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | Alerm Pattern |
| 1 | 3600 | Duration |
| 0 | 128 | Reason |
302 - Alarm setting 2/6
●1-2byte Key ID ●3-4byte Empty (0 fill)Size: 4 bytes
Default: -65536
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Key ID |
303 - Alarm setting 3/6
・Key DATA 4byte(unsigned value ) First byte to fourth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(1-4) |
304 - Alarm setting 4/6
・Key DATA 4byte(unsigned value ) From the fifth byte to the eighth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(5-8) |
305 - Alarm setting 5/6
・Key DATA 4byte(unsigned value ) From the ninth byte to the twelfth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(9-12) |
306 - Alarm setting 6/6
・Key DATA 4byte(unsigned value ) From the 13th byte to the 16th byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(13-16) |
311 - Main unit setting 1/2
The items that can be set are as follows. ●1byte ・Buzzer sound 0-2bit range ０－７ ・action mode 3-4bit 00 auto mode 01 Manual mode 10 Inoperative mode ・Type setting that can be registered as a master key 5-6bit 00 NFC card for master key only 01 PIN number only 10 NFC card for master key and PIN only 11 Felica etc. All keys ●2byte ・Battery remaining warning threshold 1byte range 33-60 ●3byte ・Imaginary mode 0bit 0:OFF / 1:ON ・auto lock 1bit 0:OFF / 1:ON ・Automatic unlock when fire occurs 2bit 0:OFF / 1:ON ・Presence / absence of authentication at locking 3bit 0:OFF / 1:ON ・Unreasonable unlock warning 4bit 0:OFF / 1:ON ・Tampering prevention function 5bit 0:OFF / 1:ON ・Automatic re-lock 6bit 0:OFF / 1:ON ・PIN security key issuance setting on key body operation 7bit 0:OFF / 1:ON ●4byte ・Open arbitrarily 1bit 0:OFF / 1:ON ・Wakeup button 2bit 0:OFF / 1:ONSize: 4 bytes
Default: 254871558
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Buzzer volume (0-2bit) |
| 0 | 2 | action mode (3-4bit) |
| 0 | 3 | Type setting that can be registered as a master key (5-6bit) |
| 33 | 60 | Battery remaining warning threshold (1byte) |
| 0 | 1 | Imaginary mode (byte-3 0bit) |
| 0 | 1 | auto lock (byte-3 1bit) |
| 0 | 1 | Automatic unlock when fire occurs (byte-3 2bit) |
| 0 | 1 | Presence / absence of authentication at locking (byte-3 3bit) |
| 0 | 1 | Unreasonable unlock warning (byte-3 4bit) |
| 0 | 1 | Tampering prevention function (byte-3 5bit) |
| 0 | 1 | Automatic re-lock (byte-3 6bit) |
| 0 | 1 | PIN security key issuance setting on key body operation (7bit) |
| 0 | 1 | Open arbitrarily (byte-4 1bit) |
| 0 | 1 | Wakeup button (byte-4 2bit) |
312 - Main unit setting 2/2
●1-2byte ・Maximum Number of Key Registrations 2byte range 1-500 ●3-4byte ・Maximum number of key registrations by users 2byte range 1-500Size: 4 bytes
Default: 335546880
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 500 | Maximum number of key registrations by users (byte-7,8 2byte |
| 1 | 500 | Maximum Number of Key Registrations (byte-5,6 2byte) |
341 - Information setting during door lock operation 1/5
・Key DATA 4byte(unsigned value ) First byte to fourth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(1-4) |
342 - Information setting during door lock operation 2/5
・Key DATA 4byte(unsigned value ) From the fifth byte to the eighth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(5-8) |
344 - Information setting during door lock operation 4/5
・Key DATA 4byte(unsigned value ) From the 13th byte to the 16th byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(13-16) |
345 - Information setting during door lock operation 5/5
Set lock operation information. ●1byte ・mode 1byte 0x00:Unlock 0x01: locking 0x02: Key registration mode Unlock: Default value ●2-3byte ・Key ID 2byte 0xFF: Default value ●4byte Empty (0 fill)Size: 4 bytes
Default: -256
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | mode |
| 0 | 500 | Key ID |
351 - Get log Index 1/10
The index where the log is saved is 1, the index which is not saved is 0, and it is possible to check the existence with the bit flag. It is read-only and can not be changed. Range:index1-index32 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Log Index Flag(1-32) |
352 - Get log Index 2/10
Range:index33-index64 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Log Index Flag(33-64) |
353 - Get log Index 3/10
Range:index65-index96 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Log Index Flag(65-96) |
354 - Get log Index 4/10
Range:index97-index128 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Log Index Flag(97-128) |
355 - Get log Index 5/10
Range:index129-index160 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Log Index Flag(129-160) |
356 - Get log Index 6/10
Range:index161-index192 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Log Index Flag(161-192) |
357 - Get log Index 7/10
Range:index193-index224 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Log Index Flag(193-224) |
359 - Get log Index 9/10
Range:index257-index288 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Log Index Flag(257-288) |
360 - Get log Index 10/10
Range:index289-index300 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1048576 | Log Index Flag(289-300) |
362 - Set Key data 2/16
・Key DATA 4byte(unsigned value ) First byte to fourth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(1-4) |
363 - Set Key data 3/16
・Key DATA 4byte(unsigned value ) From the fifth byte to the eighth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(5-8) |
364 - Set Key data 4/16
・Key DATA 4byte(unsigned value ) From the ninth byte to the twelfth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(9-12) |
365 - Set Key data 5/16
・Key DATA 4byte(unsigned value ) From the 13th byte to the 16th byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(13-16) |
366 - Set Key data 6/16
・Token 4byte(unsigned value ) First byte to fourth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Token (1-4) |
367 - Set Key data 7/16
・Token 4byte(unsigned value ) From the fifth byte to the eighth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Token (5-8) |
368 - Set Key data 8/16
・Token 4byte(unsigned value ) From the ninth byte to the twelfth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Token (9-12) |
369 - Set Key data 9/16
・Token 4byte(unsigned value ) From the 13th byte to the 16th byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Token (13-16) |
370 - Set Key data 10/16
●1-2byte(unsigned value ) Registered Date Year ●3byte(unsigned value ) Registered Date Month ●4byte(unsigned value ) Registered Date DaySize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Registered Date Year |
| 1 | 12 | Registered Date Month |
| 0 | 31 | Registered Date Day |
371 - Set Key data 11/16
●1byte(unsigned value ) Registered Date Hour UTC ●2byte(unsigned value ) Registered Date Minute UTC ●3byte(unsigned value ) Registered Date Second UTC ●4byte(unsigned value ) Reserved１Size: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 23 | Registered Date Hour UTC |
| 0 | 59 | Registered Date Minute UTC |
| 0 | 59 | Registered Date Second UTC |
| 0 | 255 | Reserved１ |
372 - Set Key data 12/16
●1-2byte(unsigned value ) Effective start date and time Year ●3byte(unsigned value ) Effective start date and time Month ●4byte(unsigned value ) Effective start date and time DaySize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Effective start date and time Year |
| 1 | 31 | Effective start date and time Day |
| 1 | 12 | Effective start date and time Month |
373 - Set Key data 13/16
●1byte(unsigned value ) Effective start date and time Hour UTC ●2byte(unsigned value ) Effective start date and time Minute UTC ●3byte(unsigned value ) Effective start date and time Second UTC ●4byte(unsigned value ) Reserved2Size: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 23 | Effective start date and time Hour UTC |
| 0 | 59 | Effective start date and time Minute UTC |
| 0 | 59 | Effective start date and time Second UTC |
| 0 | 255 | Reserved2 |
374 - Set Key data 14/16
●1-2byte(unsigned value ) Valid end date and time Year ●3byte(unsigned value ) Valid end date and time Month ●4byte(unsigned value ) Valid end date and time DaySize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Valid end date and time Year |
| 1 | 12 | Valid end date and time Month |
| 1 | 31 | Valid end date and time Day |
375 - Set Key data 15/16
●1byte(unsigned value ) Valid end date and time Hour UTC ●2byte(unsigned value ) Valid end date and time Minute UTC ●3byte(unsigned value ) Valid end date and time Second UTC ●4byte(unsigned value ) Empty(0x00)Size: 4 bytes
Default: -256
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 23 | Valid end date and time Hour UTC |
| 0 | 59 | Valid end date and time Minute UTC |
| 0 | 59 | Valid end date and time Second UTC |
376 - Set Key data 16/16
●1byte(unsigned value ) ・action 1byte 0x00 Registration 0x01 update 0x02 Delete 0xFF Default value ●2-3byte ・Key ID 2byte(unsigned value ) 0xFF Default value ●4byte(unsigned value ) ・Reject reason 1byte 0x01 success 0xFD Failure 0xFE time out 0xFF Default valueSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | action |
| 0 | 65535 | Key ID |
| 0 | 255 | Reject reason |
381 - Get all key ID 1/16
The ID for which key data is registered is 1, the ID which is not registered is 0, and the presence or absence can be confirmed by bit flag. It is read-only and can not be changed. Range:ID1-ID32 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(1-32) |
382 - Get all key ID 2/16
Range:ID33-ID64 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(33-64) |
383 - Get all key ID 3/16
Range:ID65-ID96 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(65-96) |
384 - Get all key ID 4/16
Range:ID97-ID128 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(97-128) |
385 - Get all key ID 5/16
Range:ID129-ID160 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Valid flag (byte-1 0bit) |
| 0 | 15 | Authentication method (byte-1 1-4bit) |
| 0 | 7 | Type (byte-1 5-7bit) |
| 0 | 256 | Registration type (byte-2 1byte) |
| 0 | 301 | Number of effective unlocking times 2byte |
| 0 | -1 | KeyID Flag(129-160) |
386 - Get all key ID 6/16
Range:ID161-ID192 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(161-192) |
387 - Get all key ID 7/16
Range:ID193-ID224 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(193-224) |
388 - Get all key ID 8/16
Range:ID225-ID256 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(225-256) |
389 - Get all key ID 9/16
Range:ID257-ID288 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(257-288) |
390 - Get all key ID 10/16
Range:ID289-ID320 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(289-320) |
391 - Get all key ID 11/16
Range:ID321-ID352 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(321-352) |
392 - Get all key ID 12/16
Range:ID353-ID384 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(353-384) |
393 - Get all key ID 13/16
Range:ID385-ID416 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(385-416) |
394 - Get all key ID 14/16
Range:ID417-ID448 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(417-448) |
395 - Get all key ID 15/16
Range:ID449-ID480 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | KeyID Flag(449-480) |
396 - Get all key ID 16/16
Range:ID481-ID500 (unsigned value )Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -61696 | KeyID Flag(481-500) |
1001 - Get Log 1/3
Get key operation logs. It is read-only and can not be changed. 300 logs can be saved. ●1-2byte(unsigned value ) Log output date and time Year ●3byte(unsigned value ) Log output date and time Month ●4byte(unsigned value ) Log output date and time DaySize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Log output date and time Year |
| 1 | 12 | Log output date and time Month |
| 1 | 31 | Log output date and time Day |
1002 - Get Log 2/3
●1byte(unsigned value ) Log output date and time Hour UTC ●2byte(unsigned value ) Log output date and time Minute UTC ●3byte(unsigned value ) Log output date and time Second UTC ●4byte(unsigned value ) Event Type 0x01: Unlock 0x02: locking 0x03: alarm 0x04: Master Key Registration 0x05: Key registration 0x06: Delete master key 0x07: Delete key 0x08: Delete all keys 0x09: Key invalid 0x0A: Key change 0x0B: Pairing 0x0C: Default configuration 0x0D: Configuration 0x0E: Unlock without authentication 0x0F: Lock without authentication 0x10: Version up of the farmSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 23 | Log output date and time Hour UTC |
| 0 | 59 | Log output date and time Minute UTC |
| 0 | 59 | Log output date and time Second UTC |
| 1 | 16 | Event Type |
1003 - Get Log 3/3
●1-4byte(unsigned value ) event information ●0x01: Unlock ・Key ID 2byte ・result 1byte 0x00 success 0x01 Failure 0x02 Failure (in case the dead bolt did not move despite locking / unlocking operation in automatic mode) 0x03 Failure (when clutch did not move in manual mode) ●0x02: locking ・Key ID 2byte ・result 1byte 0x00 success 0x01 Failure 0x02 Failure (in case the dead bolt did not move despite locking / unlocking operation in automatic mode) 0x03 Failure (when clutch did not move in manual mode) ●0x03: alarm ・Alarm type 1byte 0x01 Alarm notification pattern1 0x02 Alarm notification pattern2 0x03 Alarm notification pattern3 0x04 Automatic unlock when fire occurs 0x05 Destruction warning 0x07 Alarm stop 0x08 Battery remaining warning ●0x04: Master Key Registration ・Key ID 2byte ●0x05: Key registration ・Key ID 2byte ●0x06: Delete master key ・Key ID 2byte ●0x07: Delete key ・Key ID 2byte ●0x08: Delete all keys ・No details ●0x09: Key invalid ・Key ID 2byte ●0x0A: Key change ・Key ID 2byte ●0x0B: Pairing ・result 1byte 0x00 Pairing success 0x01 Pairing release successful ●0x0C: Default configuration ・No details ●0x0D: Configuration ・Setting type 1byte (Refer to main unit setting) ・Setting contents 2byte ●0x0E: Unlock without authentication ・No details ●0x0F: Lock without authentication ・No details ●0x10: Version up of the farm ・Version 1byte ・Revision 1byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | event information |
2001 - Get Key data 1/15
Get key data. It is read-only and can not be changed. 500 key data can be saved. ●1byte(unsigned value ) ・Valid flag 0bit ０ Disabled 1 Valid (default value) ・Authentication method 1-4bit 0000 NFC 0001 FeliCa 0010 Android(HCE) 0011 PIN 1111 Default value ・Type 5-7bit 000 Master key registration PIN key (one time) 001 Management PIN key 010 Master key 011 No locking / unlocking master key 100 Additional key 111 Default value ●2byte(unsigned value ) ・Registration type 1byte 0x00 user registration 0x01 System registration 0xFF Default value ●3-4byte(unsigned value ) ・Number of effective unlocking times 2byte 0xFF Default valueSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Type (byte-1 5-7bit) |
| 0 | 301 | Number of effective unlocking times 2byte |
| 0 | 1 | Valid flag (byte-1 0bit) |
| 0 | 15 | Authentication method (byte-1 1-4bit) |
| 0 | 256 | Registration type (byte-2 1byte) |
2002 - Get Key data 2/15
・Key DATA 4byte(unsigned value ) First byte to fourth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(1-4) |
2003 - Get Key data 3/15
・Key DATA 4byte(unsigned value ) From the fifth byte to the eighth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(9-12) |
| 0 | -1 | Key DATA(5-8) |
2004 - Get Key data 4/15
・Key DATA 4byte(unsigned value ) From the ninth byte to the twelfth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(9-12) |
2005 - Get Key data 5/15
・Key DATA 4byte(unsigned value ) From the 13th byte to the 16th byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Key DATA(13-16) |
2006 - Get Key data 6/15
・Token 4byte(unsigned value ) First byte to fourth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Log Index Flag(225-256) |
| 0 | -1 | Token(1-4) |
2007 - Get Key data 7/15
・Token 4byte(unsigned value ) From the fifth byte to the eighth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Token(5-8) |
2008 - Get Key data 8/15
・Token 4byte(unsigned value ) From the ninth byte to the twelfth byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Token(9-12) |
2009 - Get Key data 9/15
・Token 4byte(unsigned value ) From the 13th byte to the 16th byteSize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -1 | Token(13-16) |
2010 - Get Key data 10/15
●1-2byte(unsigned value ) Registered Date Year ●3byte(unsigned value ) Registered Date Month ●4byte(unsigned value ) Registered Date DaySize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Registered Date Year |
| 1 | 12 | Registered Date Month |
| 1 | 31 | Registered Date Day |
2011 - Get Key data 11/15
●1byte(unsigned value ) Registered Date Hour UTC ●2byte(unsigned value ) Registered Date Minute UTC ●3byte(unsigned value ) Registered Date Second UTC ●4byte(unsigned value ) Reserved１Size: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 59 | Registered Date Minute UTC |
| 1 | 23 | Registered Date Hour UTC |
| 1 | 59 | Registered Date Second UTC |
| 0 | -1 | Reserved１ |
2012 - Get Key data 12/15
●1-2byte(unsigned value ) Effective start date and time Year ●3byte(unsigned value ) Effective start date and time Month ●4byte(unsigned value ) Effective start date and time DaySize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Effective start date and time Year |
| 1 | 12 | Effective start date and time Month |
| 1 | 31 | Effective start date and time Day |
2013 - Get Key data 13/15
●1byte(unsigned value ) Effective start date and time Hour UTC ●2byte(unsigned value ) Effective start date and time Minute UTC ●3byte(unsigned value ) Effective start date and time Second UTC ●4byte(unsigned value ) Reserved2Size: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 23 | Effective start date and time Hour UTC |
| 0 | 59 | Effective start date and time Minute UTC |
| 0 | 59 | Effective start date and time Second UTC |
| 0 | -1 | Reserved2 |
2014 - Get Key data 14/15
●1-2byte(unsigned value ) Valid end date and time Year ●3byte(unsigned value ) Valid end date and time Month ●4byte(unsigned value ) Valid end date and time DaySize: 4 bytes
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 65535 | Valid end date and time Year |
| 1 | 12 | Valid end date and time Month |
| 1 | 31 | Valid end date and time Day |
2015 - Get Key data 15/15
●1byte(unsigned value ) Valid end date and time Hour UTC ●2byte(unsigned value ) Valid end date and time Minute UTC ●3byte(unsigned value ) Valid end date and time Second UTC ●4byte(unsigned value ) Empty(0x00)Size: 4 bytes
Default: -256
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 23 | Valid end date and time Hour UTC |
| 0 | 59 | Valid end date and time Minute UTC |
| 0 | 59 | Valid end date and time Second UTC |
Push the pairing button until the beep sounds three times. If you hold the master key over the card reader, you will be in Inclusion / Exclusion mode.
Push the pairing button until the beep sounds three times. If you hold the master key over the card reader, you will be in Inclusion / Exclusion mode.
Press the clear button and pairing button until the beep sounds three times. When you hold the master key over the card reader, the setting of Z - Wave Reset is reset. NOTE: Reset should be used only when the primary controller is missing or inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| System | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
