LEEDARSON
EU Smart Plug
6A-PL-VAB-C0
On/Off Power Switch
HW: 1 FW: 1.00
ZM5101
6.71.01
0x0300 (768)
0x0200 (512)
0x000B (11)
ZC10-18015958
2018-01-11 22:40:16.808586
N/A
Enhanced 232 Slave
Always On Slave
Smart plug is a Z-Wave switch based on Z-Wave wireless technology. It can report wattage consumption or kWh energy usage.
Smart Plug can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. Smart Plug is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade. If you want your Smart Plug to be a security device that use secure/encrypted message to communicate in a Z-Wave network, then a security enabled Z-Wave controller is needed.

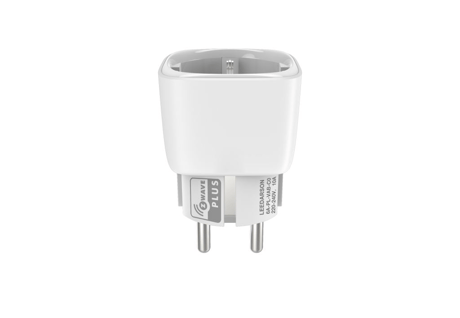

Product Picture
1 - Over current protection
Smart Plug keep detecting the load power, once the AC current exceeds 16A for more than 5s, smart plug's relay will turn off.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled |
| 1 | 1 | The function is enabled. |
2 - Setting device status after power failure
Define how the Plug reacts after the power supply is back on.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Smart Plug memorizes its state after a power failure. |
| 1 | 1 | Connected device will be on after the power supply is reconnected. |
| 2 | 2 | Connected device will be off after the power supply is reconnected. |
3 - Notification when Load status change
Smart Plug can send notifications to associated device (Group Lifeline) when the status of smart plug’s load is changed.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled. |
| 1 | 1 | Send Basic report. |
| 2 | 2 | Send Basic report only when Load status is not changed by Z-WAVE Command. |
4 - LED Load indicator mode selection
Configure LED Display mode to prevent light pollution at night.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The LED status follows the load change. |
| 1 | 1 | when operating the load, The LED lights for 5 seconds and then turns off. |
16 - The value here represents minimum change in wattage (in terms of wattage) for a meter report to be sent
When the change value of load power exceeds the setting value, smart plug will send meter report (watt)to associated device (Group Lifeline).Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Available settings |
| 0 | 0 | The function is disabled. |
17 - The value here represents minimum change in wattage percent (in terms of percentage) for a meter report (watt) to be sent
When the change value of the load power exceeds the setting value, smart plug will send meter report to associated device (Group Lifeline).Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | Available setting |
| 0 | 0 | The function is disabled. |
100 - Setting the parameters 101~104 to the default value.
Setting the parameters 101~104 to the default value.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 85 | 85 | Setting the parameters 101~104 to the default value. |
101 - Setting time for sending meter report (watt)
The interval time of sending meter report (watt) to associated device (Group Lifeline).Size: 4 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | Available settings |
| 0 | 0 | The function is disabled. |
102 - Setting time for sending meter report (KWh)
The interval of sending meter report (KWh) to association device (Group Lifeline).Size: 4 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | Available settings |
| 0 | 0 | The function is disabled. |
103 - Setting time for sending meter report (voltage)
The interval of sending meter report (voltage) to association device (Group Lifeline).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | Available settings |
| 0 | 0 | The function is disabled |
104 - Setting time for sending meter report (current)
The interval time of sending meter report (current) to associated device (Group Lifeline).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | Available settings |
| 0 | 0 | The function is disabled |
254 - Enable/disable the configuration command
Lock/unlock all configuration parameters.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unlock |
| 1 | 1 | Lock |
1. Set the Z-Wave network main controller into learning mode. 2. Short press the Z-button twice 3. The LED keep blink to the end of add inclusion, If the add for inclusion is successful, LED will turn on within 2 seconds and Then will be in power indication mode, Otherwise, The LED will keep slow flash.
1. Set the Z-Wave network main controller into removing mode. 2. Short press Z-button twice. 3. The LED keep blink to the end of remove exclusion, If the remove for exclusion is successful, The LED will keep slow flash, Otherwise, LED will be in power indication mode.
Reset Smart Plug to factory Default: 1. Make sure that the Smart Plug has been connected to the power supply. 2. Press and hold the Z-button for 5 seconds. 3. If holding time is more than one second, the LED will blink faster and faster. If holding time is more than 5 seconds, the LED will be solid for 3 seconds to indicate that the resetting is successful. Otherwise, repeat step 2. Use this procedure only in the event that the network primary controller missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
