GE
In-Wall Tamper Resistant Smart Outlet
14288/ZW1002
On/Off Power Switch
HW: 255 FW: 5.24
ZM5202
6.51.09
0x0063 (99)
0x4952 (18770)
0x3133 (12595)
ZC10-18025987
2018-02-06 00:31:50.599849
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the GE Z-Wave Tamper Resistant Smart Outlet.
Transform any home into a smart home with the GE Z-Wave Tamper Resistant Smart Outlet. The GE Z-Wave Tamper Resistant Smart Outlet enables wireless control of on/off functions from the Z-Wave controlled outlet, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. The tamper resistant duplex receptacle includes a blue LED indicator light to easily locate the receptacle in a dark room. The receptacle replaces your current electrical outlet, uses your existing wiring and provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control and a standard pass-through AC outlet for other electrical appliances. Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!

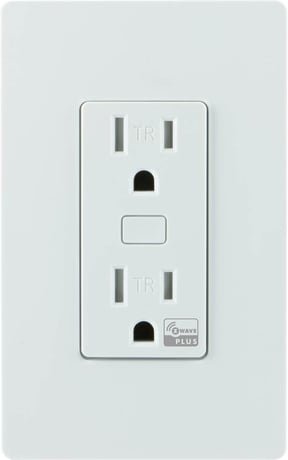

Product Picture
View configuration parameters (1)
3 - LED Light
Invert LED LightSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED On when load is Off, Led Off when load is On |
| 1 | 1 | LED On when load is On, LED Off when laod is Off (Default) |
| 2 | 2 | LED always off |
Operating instructions (3)
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the Program Button to add it in the network.
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the manual/program button to remove it from the network.
Press the button 3 times, then press and hold the button for at least 3 seconds. The LED will blink 5 times to confirm. NOTE: This should only be used in the event your network’s primary controller is missing or otherwise inoperable
Document (1)
| Type | Name | |
|---|---|---|
| Product or Owner's Manual | 14288 QSG v1.pdf |
Feature (1)
| Type | Value(s) |
|---|
