Danalock
Danalock Universal Module Version 3
UMV3-BTZE-EU
Door Lock - Keypad
HW: 2 FW: 1.03:00.06
ZM5202
6.71.01
0x010E (270)
0x0009 (9)
0x0002 (2)
ZC10-18026026
2017-12-14 23:20:22.044288
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Operates garagedoors, doorstrikes, electromechanical or magnetic locks.
The Universal Model V3 supports: - S0/S2 Z-Wave Security - Can operate 3 outputs. - Outputs can be delayed. - Bluetooth Smart

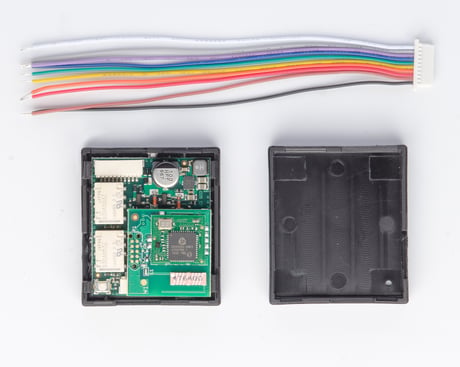

Product Picture
1 - Relay 1 Pulse length (ms)
Time the relay is on in milliseconds.Size: 4 bytes
Default: 5000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2147483647 | Time the relay is on in milliseconds. |
2 - Relay 1 Delay length (ms)
Time before the relay is activated.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2147483647 | Time before the relay is activated. |
3 - Relay 2 Pulse length (ms)
Time the relay is on in milliseconds.Size: 4 bytes
Default: 5000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2147483647 | Time the relay is on in milliseconds. |
4 - Relay 2 Delay length (ms)
Time before the relay is activated.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2147483647 | Time before the relay is activated. |
5 - Relay 3 Pulse length (ms)
Time the relay is on in milliseconds.Size: 4 bytes
Default: 5000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2147483647 | Time the relay is on in milliseconds. |
6 - Relay 3 Delay length (ms)
Time before the relay is activated.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2147483647 | Time before the relay is activated. |
7 - Disable battery alarm
Disable battery alarm 0 = Battery Alarm enable, 1 = Battery Alarm disableSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Battery Alarm enable |
| 1 | 1 | Battery Alarm disable |
8 - Battery Sample Interval Seconds
Battery Sample Interval SecondsSize: 4 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Sample off |
| 1 | 2147483647 | Seconds between samples |
9 - Battery Milli Volt Level Threshold Maximum
Maximum battery alarm level in mV.Size: 4 bytes
Default: 12100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2147483647 | Maximum battery alarm level in mV. |
10 - Battery Milli Volt Level Threshold Minimum
Minimum battery alarm level in mV.Size: 4 bytes
Default: 11600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2147483647 | Minimum battery alarm level in mV. |
11 - Ble temporary allow – timer - seconds
Allow Bluetooth to be on for a time in secondsSize: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 2147483647 | Seconds Bluetooth Smart is on. |
12 - BLE Always allowed
0 = Not always allowed. 1 = Always allowed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Not always allowed |
| 1 | 1 | Always allowed |
To add or include the UMV3 into a Z-Wave network 1. Set the controller in inclusion mode 2. Push the switch once. 3. Wait 5 seconds.
To remove or exclude the UMV3 into a Z-Wave network 1. Set the controller in exclusion mode 2. Push the switch once. 3. Wait 5 seconds.
The UMV3 can be set to factory settings by pushing the switch 10 times. Please use this procedure only when the primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
