Oomi
Color Strip
FT169-K
Light Dimmer Switch
HW: 169 FW: 1.00
ZM5101
6.51.10
0x016A (362)
0x0103 (259)
0x00A9 (169)
ZC10-17125905
2017-12-13 20:44:28.781164
N/A
Enhanced 232 Slave
Always On Slave
Oomi Color Strip is a low-cost Z-Wave LED Strip module which allows control (on/off/dim) with the use of Z-Wave.
Oomi Color Strip is a multi-coloured LED Strip which allows control (on/off/dim/colour change) via wireless Z-Wave commands. The Color Strip can also communicate securely via AES 128 wireless Z-Wave commands and supports Over-The-Air (OTA) firmware upgrades.

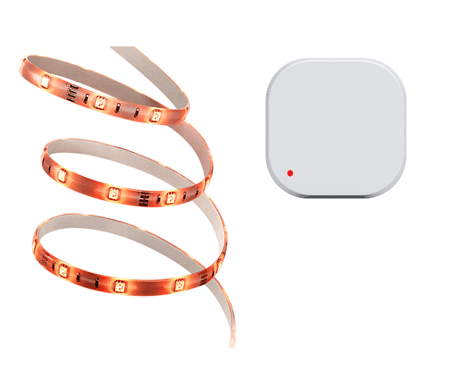

Product Picture
20 - Set the LED Strips state after it is re-powered on
Set the LED Strips state after it is re-powered on.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The last state before re-power on. |
| 1 | 1 | Always On. |
| 2 | 2 | Always Off. |
32 - Enable/disable to send out a report when the color is changed.
Enable/disable to send out a report when the color is changed.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Basic Report. |
33 - Get the LED strip’s color value.
Get the Strip’s color value. Note: This parameter is a get-only parameter.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Bule color value |
| 256 | 65535 | Green color value |
| 65536 | 16777215 | Red color value |
34 - Enable/disable to turn on the last brightness level of the LED Strip when using the Color Switch Set CC to change its color.
Enable/disable to turn on the last brightness level of the LED Strip when using the Color Switch Set CC to change its color.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
35 - Configure the display mode of Cold/Warm white.
Configure the display mode of Cold/Warm white.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Arbitrary combination of Cold/Warm white. |
| 1 | 1 | Complementary combination of Cold/Warm white. |
36 - Reboot/save/exit Colorful mode.
Reboot/save/exit Colorful mode. Note: This parameter is a set-only parameter.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Un-reboot Colorful mode. |
| 1 | 1 | Reboot Colorful mode. |
| 2 | 2 | Exit Colorful mode. |
| 3 | 3 | Save the current Colorful mode value and then to be exited. |
37 - Colorful mode configuration.
Configure the Colorful mode.Size: 4 bytes
Default: 157483008
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 31 | Colour Change Speed Level |
| 32 | 255 | Time Base of Color Change Speed |
| 256 | 65535 | Cycle Count |
| 65536 | 16777215 | Brightness |
| 16777215 | 134217727 | Color Display Cycle |
| 134217728 | 1073741823 | Color Change Speed Option |
| 1073741824 | 2147483647 | Color Transition Style |
38 - Change speed
Set the Change speed.Size: 4 bytes
Default: 50332416
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Set the pause time of OFF. |
| 256 | 65535 | Set the pause time of ON. |
| 65536 | 16777215 | Set the speed from ON to OFF. |
| 16777216 | 2147483647 | Set the speed from OFF to ON. |
39 - Color index configuration when the LED Strip is in Multi color mode.
Color index configuration when the LED Strip is in Multi color mode.Size: 4 bytes
Default: 2003125025
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 15 | Index 8 |
| 16 | 255 | Index 7 |
| 256 | 4095 | Index 6 |
| 4096 | 65535 | Index 5 |
| 65536 | 1048575 | Index 4 |
| 1048576 | 16777215 | Index 3 |
| 16777216 | 268435455 | Index 2 |
| 268435456 | 2147483647 | Index 1 |
40 - Colorful mode configuration.
Colorful mode configuration.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Rainbow mode. |
| 2 | 2 | Mutil color mode. |
| 3 | 3 | Fade out and fade in (Red). |
| 4 | 4 | Fade out and fade in (Green). |
| 5 | 5 | Fade out and fade in (Blue). |
80 - To set whcih notification can be sent to the associated devices (Group 1) when the state of LED Bulb is changed.
To set whcih notification can be sent to the associated devices (Group 1) when the state of LED strip is changed.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Nothing |
| 1 | 1 | Hail CC |
| 2 | 2 | Basic CC report. |
| 3 | 3 | Haill CC when pressing the Action Button to change its state |
112 - Set the Dimmer mode.
Set the Dimmer mode.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Parabolic curve mode |
| 1 | 1 | Index curve mode |
| 2 | 2 | (Parabolic + Index)/2 mode |
| 3 | 3 | Linear mode |
252 - Enable/disable Lock Configuration
Enable/disable to lock Configuration parameters.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
255 - Reset the Color Strip
Reset the Color Strip to factory default.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reset all configuration parameters to factory default settings |
| 1431655765 | 1431655765 | Reset the Color Strip to factory default. |
Turn the primary controller of Z-Wave network into inclusion mode, press the Action Button on the Color Strip Controller.
Turn the primary controller of Z-Wave network into exclusion mode, press the Action Button on the Color Strip Controller.
Press and hold the Action Button on the Color Strip Controller for 20 seconds and then release it. Use this procedure only in the event that your primary network controller is missing or inoperable.
Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
