KOCOM
PIR Sensor
KAS-Z10
Notification Sensor
HW: 3 FW: 1.01
ZM5101
6.71.01
0x034C (844)
0x0003 (3)
0x0001 (1)
ZC10-18015981
2018-01-23 21:23:43.628446
N/A
Routing Slave
Reporting Sleeping Slave
Yes
KAS-Z10(PIR Sensor) is Z-Wave PLUS Device
This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

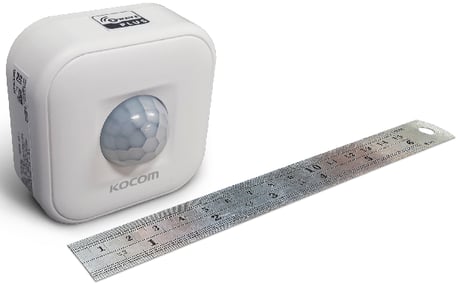

Product Picture
Press & hold inclusion/Exclusion button during 1 seconds when Open Sensor is exclusion status Press for 1seconds, LED is turn on Open sensor will try inclusion for 15 seconds when button is released. If inclusion is successful, LED will blink 3 times with 100ms interval
Press & hold inclusion/Exclusion button during 1 seconds when Open Sensor is exclusion status Press for 1seconds, LED is turn on Open sensor will try exclusion when button is released. If exclusion is successful, LED will blink 3 times with 100ms interval
Wake up Notification is transmitted every 30 minutes by default Wake up Notification can be changed in controller
Press & hold inclusion/Exclusion button during 5 seconds. LED turn on and LED turn off after 5sec Release Inclusion/Exclusion Factory reset will be done in 5 seconds and blink 5 times with 100ms interval ※ Please use factory reset only when the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
