Golden Security
Outdoor Strobe Siren
GS-ZSS08
Siren
HW: 19 FW: 1.32
ZM5202
6.71.01
0x033A (826)
0x0003 (3)
0x0101 (257)
ZC10-18015964
2018-01-18 21:06:53.387072
N/A
Enhanced 232 Slave
Always On Slave
Yes
Z-Wave wireless outdoor usage waterproof siren
This product can be included and operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. The siren support 110dB alarm sound and light flashing to threaten burglars/intruders.

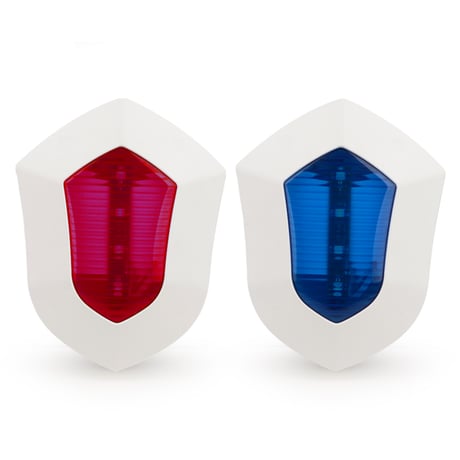

Product Picture
1 - Alarm Sound Selected
This parameter is to set the sound sent by the alarm when giving an alarm and users can choose five different sound sources through this setting.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | default alarm sound |
| 2 | 6 | to choose different alarm sound |
2 - Alarm Sound Volume Settings
Users can set through this parameter the sound volume sent when the alarm is activated, and there are 16 levels, with the adjustable scales being 0~15.0 is the minimum volume and 15 is the maximum volume.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no alarm sound |
| 1 | 14 | from low to high alarm sound volume setting |
| 15 | 15 | maximum volume |
3 - Alarm Duration Time
This parameter can set the duration of the alarm function after activation. Unit of time is: seconds.Size: 2 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Alarm Silenced (No Alarm) |
| 1 | 32766 | Duration of the alarm in Seconds |
| 32767 | 32767 | The alarm stays on until shut down by the user. |
4 - Led Blink Pattern
There have 3 led pattern mode for user selecting.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | LED will not turn on when there is an alarm. |
| 2 | 2 | The LED will blink slowly when there is an alarm. |
| 3 | 3 | The LED will blink rapidly when there is an alarm. |
5 - Switch Binary Report Disable
Set this configuration to ‘0’, siren will not send an SWITCH_BINARY_REPORT to controller when an alarm is happed.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | siren will not send an SWITCH_BINARY_REPORT to controller when an alarm is happed. |
| 1 | 1 | siren will send an SWITCH_BINARY_REPORT to controller when an alarm is happed. |
6 - Alarm Disable
This configuration sets siren alarm is enabled or disabled.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | alarm disable, siren will never give an alarm. |
| 1 | 1 | alarm enable, siren will give an alarm when an alarm event is happened. |
7 - Sensor Report Enable
This configuration sets binary sensor report is enabled or disabled.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | enable sensor binary report when device detects a tampering event. |
| 0 | 0 | disable sensor binary report when device detects a tampering event. |
1、 Set Z-Wave™ Controller into inclusion mode, 2、 Power on the device. 3、 Press the button 3 times within 1.5s. 4、 The device will be entered into inclusion mode automatically.
1、 Set Z-Wave™ Controller into exclusion mode 2、 Power on the device. 3、 Press the button 3 times within 1.5s 4、 The device will be entered into exclusion mode automatically.
Note: please use the reset procedure only when the primary controller is missing or inoperable. Operation as below: 1、 Power on the device. 2、 Keep holding touched the button for 10s until the led turn to red, then release.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Siren |
|
