NEC
BL1000HW
H03HG8
Central Controller
HW: 1 FW: 4.54:01.00
ZM5101
6.51.10
0x0337 (823)
0x0001 (1)
0x0005 (5)
ZC10-18015969
2018-01-19 20:44:46.496121
N/A
Static Controller
Central Static Controller
Gateway device for fixed network (FTTH) service provided by KDDI.
BL1000HW is the service gateway device to provide the KDDI's FTTH service. So this can be used only in KDDI's network. This also has the following features ・Wireless router technology ・Number of USB Ports:USB3.0 × 1 port ・Number of Ether port : 1Gbps × 3port type RJ45 ・Dial-up port :1port type RJ11 When you use this device as the Z-Wave gateway, you have to subscribe the KDDI's FTTH service and optional service.

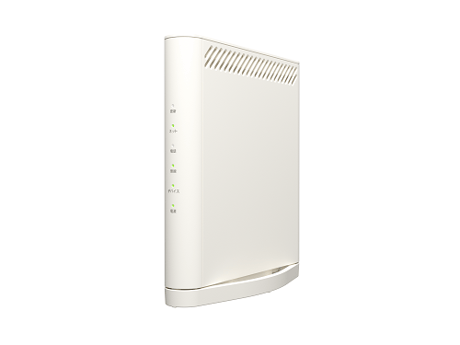

Product Picture
1. Unplug this product and wait for approximately 10 seconds. 2. Hold down the reset button (It is placed at the bottom of the back side) and keep holding it . 3.Plug in this product.(Keep holding the reset button.) About 20 seconds after , All front lumps blink 3 times at the same time , After that you may release your hands from the reset button. ※Don't unplug this product until completely initialized, as it may be the cause of breakdown. ""If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.""
To include, select the kind of device by Smartphone application, and it induces to push down the program switch of device. The detail operation and screen transition is described on the Product Manual. Please refer page 2 to 3.
To exclude the registered device by Smartphone application, and it induces to push down the program switch of device. The detail operation and screen transition is described on the Product Manual. Please refer page 8 to 10.
