Ecolink Intelligent Technology
Z-Wave Plus Smart Switch - Double Rocker
DDLS2-ZWAVE5
On/Off Power Switch
HW: 255 FW: 10.01
ZM5202
6.51.09
0x014A (330)
0x0006 (6)
0x0003 (3)
ZC10-18015942
2018-01-09 23:18:23.213778
N/A
Enhanced Slave
Listening Sleeping Slave
Yes
Easily automate overhead lights, table lamps or other accessories with the Ecolink Z-Wave Plus Smart Switch. Simple to install in minutes by removing existing switch plate and installing this on the switch. No need to touch any electrical wiring.
Easily automate overhead lights, table lamps or other accessories with the Ecolink Z-Wave Plus Smart Switch. Simple to install in minutes by removing existing switch plate and installing this on the switch. No need to touch any electrical wiring. Features Quick installation, no need to access high voltage wires Compatible with all Z-wave certified hubs & controllers Preserves manual control of switch Senses current status of switch Works with single gang Rocker type switches

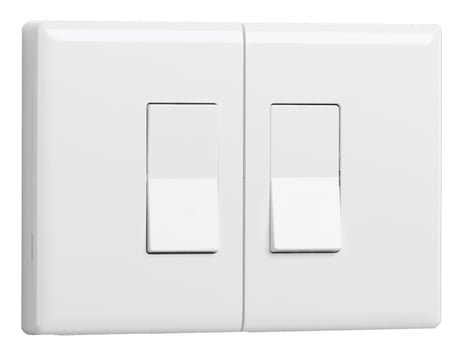

Product Picture
Network Inclusion The Z-Wave Plus Smart Switch must be added to a Z-Wave Plus network prior to use. To include the device in a network both the device and the network controller must be in inclusion mode at the same time. Refer to the instructions provided by the manufacturer of your specific controller for details on initiating the controller’s inclusion mode. 1) Verify that the Z-Wave Plus controller you are using is compatible with the Z-Wave Plus Smart Switch. 2) Put your Z-Wave Plus Controller into add (inclusion) mode. 3) Press the inclusion / exclusion button on the Z-Wave Plus Smart Switch. 4) The LED on the front of the unit will turn off if successful included into a network.
Network Exclusion 1) Any Z-Wave Plus Device can be removed from any Z-Wave Plus controller. Follow the directions to put your Z-Wave Plus Controller into exclusion mode. 2) Press the inclusion / exclusion button on the Z-Wave Plus Smart Switch.
Factory Default The Z-Wave Plus device is automatically factory defaulted when removed from a Z-Wave Plus network. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| General Purpose |
