Glamo Inc.
iRemocon Wi-Fi
IRM-03WLA
Central Controller
HW: 1 FW: 5.34:02.61:01.00
ZM5202
6.71.01
0x034B (843)
0x0001 (1)
0x0001 (1)
ZC10-18025985
2018-01-22 22:23:54.416889
N/A
Bridge Controller
Central Static Controller
iRemocon is a one-stop solution for a number of needs on home automation, HEMS and Smart Lock.
"iRemocon" is an universal remote controller with IR signal learning functionality for a wide variety of home appliances from Smartphone APP. iRemocon is a turn key solution to bring home automation at ease for consumers, and it is widely adopted as standard equipment of properties managed by apartment developers and custom-home builder, not only for consumers, but also Homebuilding Industry. iRemocon is also capable of working with HEMS, e.g. CT sensor or smart meter to retrieve power consumption, JEM-A controlled floor heating and ECHONET Lite capable appliances like bath water heater. iRemocon is one-stop solution for a number of needs on home automation, HEMS and Smart Lock.

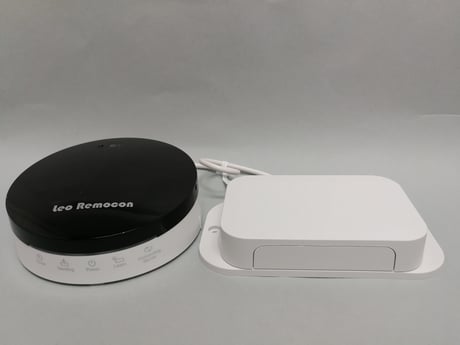

Product Picture
1. Run network join from Primary controller 2. Make sure iRemocon SYNC-LED blinks slowly. 3. Click “Learn mode” 4. Input DSK 5-digit on the primary controller (e.g. PC Controller) dialog and complete inclusion.
1. Click “Reset” 2. Once the lock device is removed, iRemocon “SYNC-LED” blinks slowly. Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable.
1. Set DSK 5-digit in the DSK text box. 2. Click “Add”, then SYNC-LED (at the bottom of the iRemocon) blinks fast. 3. Carry out the lock device inclusion action. 4. Once the device is joined to the network properly, iRemocon “SYNC-LED” lighting up.
1. Click “Remove”, then SYNC-LED (at the bottom of the iRemocon) blinks fast. 2. Carry out device exclusion action. 3. Once the device is removed, iRemocon “SYNC-LED” blinks slowly.
| Type | Value(s) |
|---|
