Z-Wave In-Wall On/Off Switch
WS-100
On/Off Power Switch
HW: 255 FW: 50.03
ZM5202
6.81.00
0x0315 (789)
0x4447 (17479)
0x3033 (12339)
ZC10-18025995
2018-02-07 22:34:12.148082
N/A
Enhanced 232 Slave
Always On Slave
ZLINK WS-100 is a Z-Wave In-Wall switch designed for wireless on-off control of connected lighting and appliance loads.
ZLINK’s WS-100 is a Z-Wave Plus certified device with S2 security and Smart Start features. You can now add this device securely and with ease using QR code on the product with compatible gateways supporting S2 and Smart Start. Sleek WS-100 communicates with other Z-Wave certified devices and updates your home into a smart home. ZLINK WS-100 replaces a standard in-wall light switch turning it into a Z-Wave controlled network device with manual and remote ON/OFF control. ZLINK WS-100 supports, “Instant Feedback” of manual status to compatible gateways as well as Central Scene to allow setting multiple scene control throughout the home, with gateways supporting Central Scene. Each Z-Wave device serves as a node to repeat the signal in the network, thus, extending the overall Z-Wave mesh wireless network range. Additional Features: • Power 120 VAC, 60Hz, up to 1800 watts • Region US: 908.4, 916 MHz • Works with incandescent, CFL & LED lights • Remotely or manually turns ON or OFF lights • Fits standard wall plates (wall plate not included) • Works with any certified gateway supporting Z-Wave

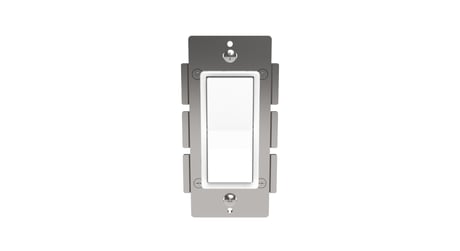

Product Picture
3 - Night Light
The LED indicator will be OFF when the connected light is ON and vice versa. When value =0 the LED indicator will be OFF when the the connected light is ON, and the LED will be ON when the connected light is OFF. If value =1 the LED indicator will be ON when the connected light is ON, and the LED indicator will be OFF when the connected light is OFF. If value =2 the LED indicator will always be OFF regardless of the load statusSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | When value =0 the LED indicator will be OFF when the the connected light is ON, and the LED will be ON when the connected light is OFF. If value =1 the LED indicator will be ON when the connected light is ON, and the LED indicator will be OFF when the connected light is OFF. If value =2 the LED indicator will always be OFF regardless of the load status |
4 - Orientation of ON/OFF on rocker switch
The orientation of the ON/OFF on the rocker switch can be inverted using parameter 4. If value =0, the connected light will turn ON by pressing the top side of the rocker switch and turn OFF by pressing the bottom side. If value =1 the connected light will turn OFF by pressing the top side of the rocker switch and turn ON by pressing the bottom side.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | If value =0, the connected light will turn ON by pressing the top side of the rocker switch and turn OFF by pressing the bottom side. If value =1 the connected light will turn OFF by pressing the top side of the rocker switch and turn ON by pressing the bottom side. |
Place your Z-Wave controller in ""Inclusion"" mode. Then tap either the top or bottom paddle once to initiation Inclusion.
Place your Z-Wave controller in ""Exclusion"" mode. Then tap either the top or bottom paddle once to initiation Exclusion.
1. Turn the connected light ON with the rocker 2. Quickly tap the topside of the rocker 3 times 3. Then quickly tap the bottom side of the rocker 3 times If you see the lights turn OFF then ON it means that the module has been reset successfully. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
